ST321T LED39S/PW930 WIA WB WH
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ST321T LED39S/PW930 WIA WB WH |
| Brand | PHILIPS |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |

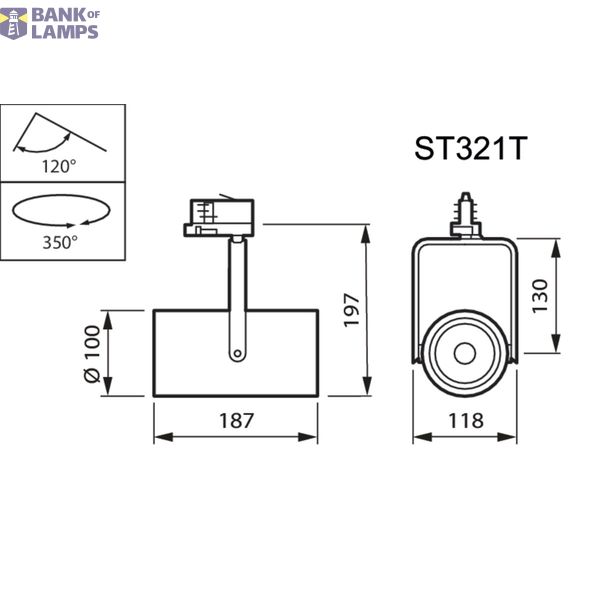

| Width | 118 mm |
| Colour rendering index CRI | 90-100 |
| Length | 187 mm |
| Height/depth | 197 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 3000 K |
| Max. system power | 35 W |
| Rated luminous flux according to IEC 62722-2-1 | 3900 lm |
| Luminaire efficacy | 113 lm/W |
Packing details
| Packing level 1 | 8720169013346 |
Other Technical data
| Protection class | II |
| Outer diameter | 100 mm |
| Reflector | High-gloss |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Colour housing | Black |
| Surface protection | Powder coating |
| Voltage type | AC/DC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| Built-in width | 175 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 12700 cd |
| Number of poles | 4 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | None |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 3900 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Total harmonic distortion | 20 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | 1-35 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| LED nominal current at constant current | 900 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | Yes |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Reflector |
| Dimming depending on control gear | Yes |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 40 |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | Yes |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Built-in height/depth | 0 mm |
| Power factor | 0.9 |
Downloads
Description
Dankzij de GreenSpace Accent Projector-serie kunnen winkeliers en gebouwbeheerders nu genieten van de superieure lichtkwaliteit en toonaangevende energiezuinigheid van PerfectAccent-optieken voor een redelijke initiële investering. De nieuwe PerfectAccent-optieken schijnen sprankelend licht op je producten en verhogen tegelijkertijd het oogcomfort van de klant. Installatie en herpositioneren gaan snel en eenvoudig zonder extra gereedschap, aangezien de GreenSpace Accent Projector naadloos te integreren is op 3C- en DALI-spanningsrails, in CoreLine LichtLijn en in Maxos fusion. Voor modewinkels en voedingsmiddelenwinkels (supermarkten, hypermarkten) is de GreenSpace Accent Projector ook verkrijgbaar met speciale FreshFood LED-recepten om de aangeboden handelswaar en verse etenswaren in het allerbeste licht te presenteren. Neem een kijkje op onze Fashion & Food cataloguspagina's en ontdek meer over PremiumWhite, PremiumColor, Fresh Meat, Rosé, Frost en Champagne.
