SCG-M631 SST CG M63X1.5 29-35MM
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
210,70 €
EAN: 5415022429824
MPN: 7TCA303040R0047
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SCG-M631 SST CG M63X1.5 29-35MM |
| Brand | ABB |
| Categories |
Standard Cable Glands
|
| Harmonized System Code | 7307 2910 00 |
| Model | Straight |
| Thread length | 10 mm |
| Material quality | Stainless steel V4A |
| Thread type | Metric |
| Material | Metal |
| Hexagon angular dimension | 77 mm |
| Suitable for cable diameter | 29-35 mm |
| Degree of protection (IP) | IP68 |
| Nominal thread size metric/PG | 63 |
Packing details
| Packing level 1 | 5415022429824 |
Other Technical data
| Halogen free | Yes |
| Shock resistant | Yes |
| RAL-number | 0 |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | No |
| With strain relief | No |
| Glass-fibre reinforced | No |
| Operating temperature | -20-100 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | Yes |
| Separable screw gland | No |
| For Ex-zone gas | None |
| For Ex-Zone dust | None |
| Wrench width | 70 mm |
Description

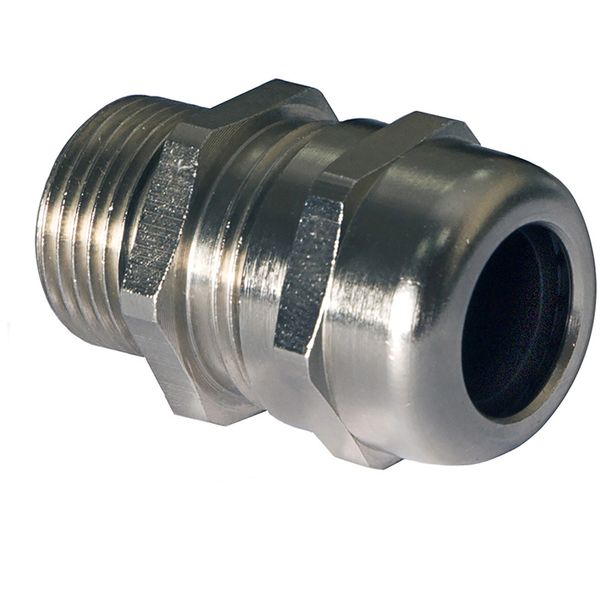

Non Armoured Cable Gland, Thread Size M63, Cable Range 29 to 35mm, Thread Length 10mm, Stainless Steel
