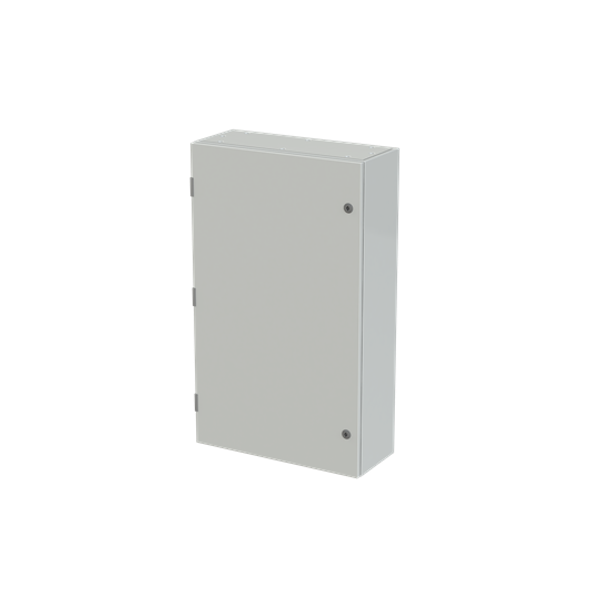

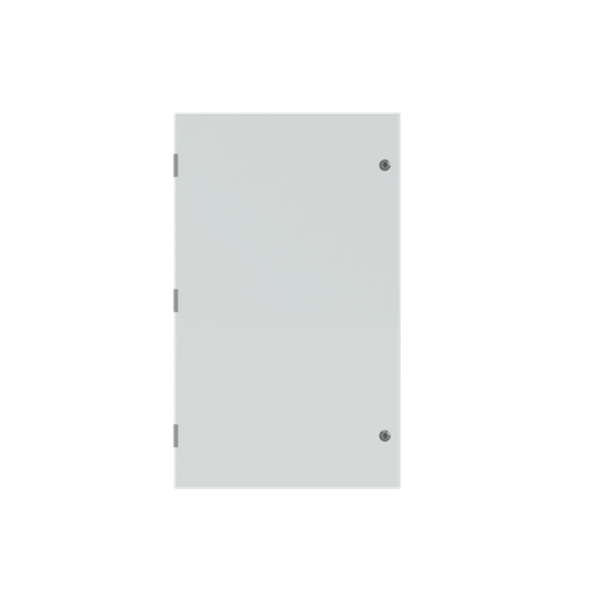

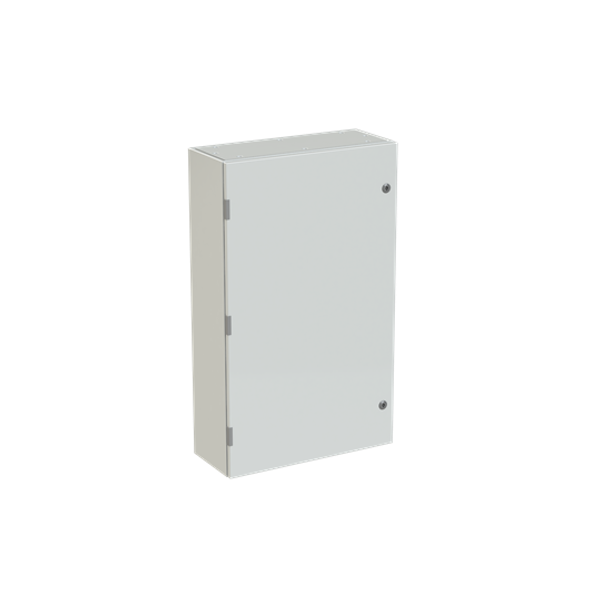

SR2-SRN10625K Metallic enclosure SR2
In vendor's stock
Price (excl. VAT):
349,74 €
per pcs
EAN: 8015646753519
MPN: SRN10625K
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SR2-SRN10625K Metallic enclosure SR2 |
| Brand | ABB |
| Categories |
Cabinet Enclosures
|
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC000058 |
| Circuit integrity | None |
| Impact strength | IK10 |
| Degree of protection (IP) | IP65 |
Packing details
| Packing level 1 | 8015646753519 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Protection class | I |
| Colour | Grey |
| Width | 600 mm |
| Height | 1000 mm |
| Depth | 250 mm |
| RAL-number | 7035 |
| With mounting plate | TRUE |
| Surface protection | Powder coating |
| Built-in depth | 182 mm |
| Type of cover | Door |
| Extension possible | FALSE |
| Inner depth | 233,5 mm |
| Housing material | Steel |
| Suitable for outdoor use | FALSE |
| Type of door | Single |
| Transparent cover/door | FALSE |
| With lock | TRUE |
| Material plate thickness cabinet | 1,2 mm |
| Material plate thickness door/cover | 1,2 mm |
| Cover model | None |
| Number of openings for flange plates | 2 |
| Degree of protection (NEMA) | 3R |
| Cover with overpressure release | FALSE |
Downloads
Description
Rozváděč na povrch 600x1000x250, IP65, Plechový, Plechová plná dvířka, RAL 7035, včetně montážní desky
