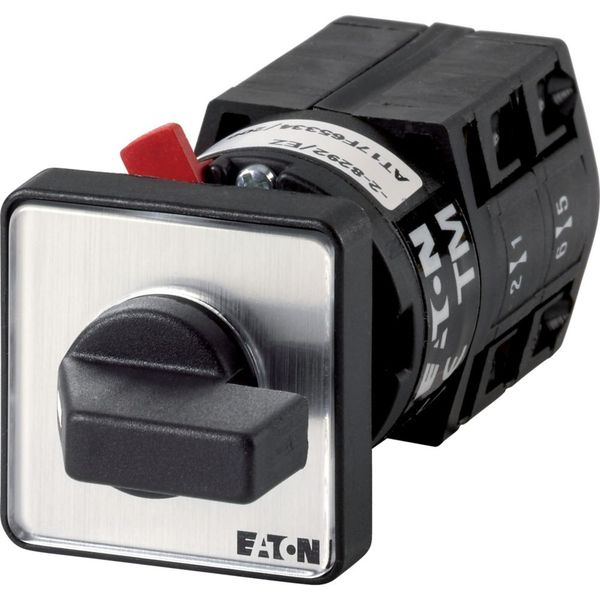

TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return image 1
TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return image 2
TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return image 3
TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return thumbnail 1
TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return thumbnail 2
TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return thumbnail 3
EATON

TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return

Order only
Price (excl. VAT):
26,25 €
This price is valid until 30.06.26
EAN: 4015080168386
MPN: 016838
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name TM-2-8177/EZ Spring-return switch, TM, 10 A, center mounting, 2 contact unit(s), Contacts: 4, 60 °, momentary/maintained, With 0 (Off) position, with spring-return
Brand EATON
Categories Control Switches
Country of origin* AT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 5080 00
Number of switch positions 5
Rated permanent current Iu 10 A
Number of poles 2
With zero (off) position Yes
With retraction in 0-position No
Type of switch On/Off switch
Max. rated operation voltage Ue AC 500 V

Packing details

Packing level 1 4015080168386

Other Technical data

Width in number of modular spacings 0
Degree of protection (IP), front side IP65
Type of control element Toggle
Front shield size 48x48 mm
Suitable for floor mounting No
Suitable for front mounting Yes
Suitable for distribution board installation No
Suitable for intermediate mounting No
Complete device in housing No
Device construction Built-in device
Degree of protection (NEMA), front side 12

Description

Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: START>1-0-2
