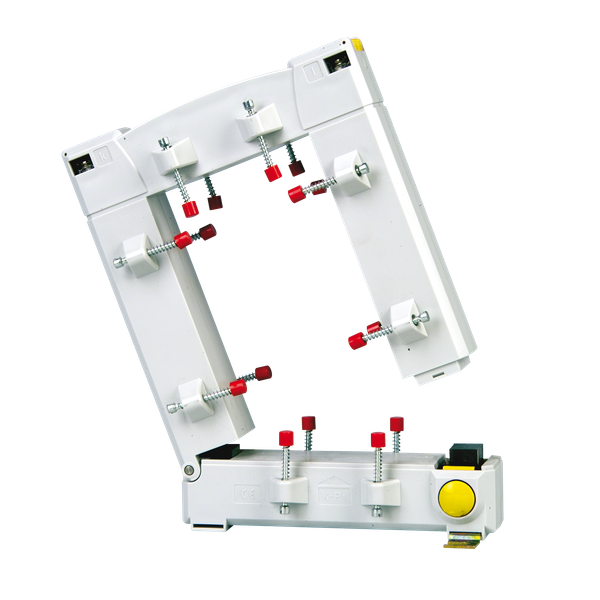

Split-core CT TO 812 1250A/5A Class 0,5 7,5VA
Order only
Price (excl. VAT):
121,38 €
EAN: 3596031742172
MPN: 192T4712
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Split-core CT TO 812 1250A/5A Class 0,5 7,5VA |
| Brand | Socomec |
| Categories |
Measurement Transformers
|
| Country of origin | HU |
| Harmonized System Code | 8504 3180 00 |
| Model | Attachable current transformer |
| Primary rated current | 1250 A |
| Secondary rated apparent power | 7.5 VA |
| Secondary rated current | 5 A |
| Overcurrent limiting factor | FS 5 |
| Accuracy class | 0.5 |
Packing details
| Packing level 1 | 3596031742172 |
Other Technical data
| Number of primary inputs | 1 |
| With copper rail | No |
| Snap mounting | Yes |
| With shock protection | No |
| Calibrated | No |
| Height opening | 85 mm |
| Width opening | 125 mm |
| Secondary connection | Screw connection |
Downloads
Description
Split-core CT TO 812 1250A/5A Class 0,5 7,5VA
