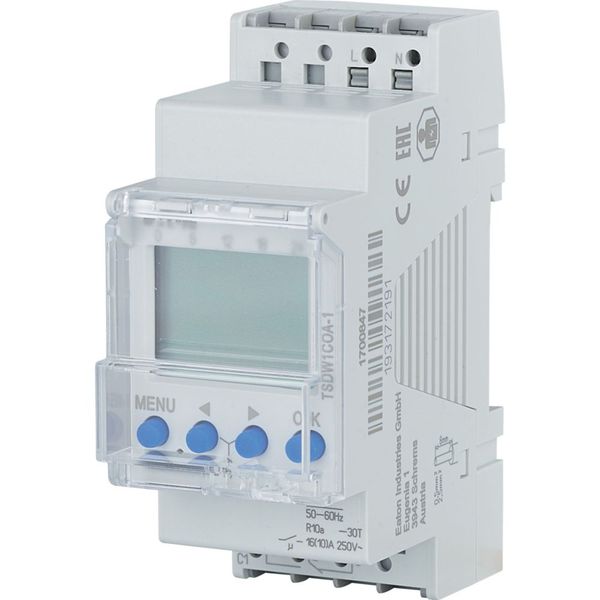

TSDW1COA-1 Digital Astronomical Timeswitch, DIN rail 2 TE, weekly program, 1 channel, changeover contact, push terminals
Order only
Price (excl. VAT):
125,73 €
EAN: 9008790990465
MPN: 196850
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | TSDW1COA-1 Digital Astronomical Timeswitch, DIN rail 2 TE, weekly program, 1 channel, changeover contact, push terminals |
| Brand | EATON |
| Categories |
Marking Plates and Enclosures
|
| Country of origin | DE |
| Harmonized System Code | 9107 0000 00 |
| Mounting method | DIN rail |
| Number of contacts | 1 |
| Number of channels | 1 |
| Radio-controlled | No |
| Contact type | Change-over contact (NO/NC) |
| GPS (global positioning system) | No |
| 60 min program | No |
| Cycle program | No |
| Mains synchronous | No |
| Quartz controlled | Yes |
| Automatic switching summer-/winter time | Yes |
| Voltage type of supply voltage | AC |
| External programming | Yes |
| Radio-controlled (DCF77) | No |
| Supply voltage | 230-240 V |
| Frequency supply voltage | 50-60 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Max. switching power LED | 600 W |
Packing details
| Packing level 1 | 9008790990465 |
Other Technical data
| Width | 35.8 mm |
| Height | 90.1 mm |
| Depth | 69.2 mm |
| Number of memory locations | 56 |
| Astro program | Yes |
| Weekly program | Yes |
| Annual program | No |
| Width in number of modular spacings | 2 |
| 24 h program | Yes |
| Holiday program | Yes |
| Random program | No |
| Impulse program | No |
| Suitable for manual operation | Yes |
| Switching preselection | Yes |
| Potential free switch contact | Yes |
| Hour meter | No |
| Autonomy in years | 10 |
| Autonomy in hours | 0 |
| Shortest switching time channel 1 | 1 min |
| Shortest switching time channel 2 | 0 min |
| Text guidance in display | Yes |
| Accuracy per day | 1 s |
| External pushbutton input | No |
| With memory card | No |
Description
Digital, serial installation Astro time switches with ex-factory-set clock time, text-oriented user guidance, and backlit display, width 35 mm, astronomic program switches at sunrise and sunset, database with city names, automatic DST setting offset max. +/-120 min., astro function weekly program can be deactivated, memory locations 54, interface memory card/PC, hours-run counter for light element, ON/OFF permanent, duoFix- plug-in terminals, zero-crossing circuit, switching by hand, PIN - encryptor, 10 years autonomy, 1 channel, changeover contact 16(10) A/250V~, LED 600W (>2W), Stand-by consumption ~0,4W, sealable transparent cover
