SPIDER+10 KIT S/EW 10 3000K BLACK

Name: SPIDER+10 KIT S/EW 10 3000K BLACK
Brand: Performance in Lighting
Price: 78.970 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

78,97 €

This price is valid until 24.12.25

EAN: 8018367701470

MPN: 3108612

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SPIDER+10 KIT S/EW 10 3000K BLACK
Brand	Performance in Lighting
Categories	Wall mounting lamps
Country of origin	TW
Harmonized System Code	9405 4210 00
Width	66 mm
Colour rendering index CRI	80-89
Length	130 mm
Height/depth	26 mm
Lamp type	LED not exchangeable
Impact strength	IK06
Nominal voltage	220 V
Beam angle	Extreme wide beam >80°
Colour temperature	3000 K
Max. system power	10 W

Packing details

Packing level 1

8018367701470, 8018367701470

Other Technical data

Protection class	I
Reflector	None
Lamp holder	None
Conductor cross section	1.5 mm²
Connection type	Screwed terminal
Colour housing	Black
Surface protection	Powder coating
Voltage type	AC
With movement sensor	No
Suitable for lamp power	10 W
Type of control gear	LED operating device voltage-controlled
Suitable for wall mounting	Yes
With light sensor	No
Suitable for suspended mounting	No
Number of poles	3
Housing material	Aluminium
Light outlet	Direct
Light sharing	Symmetric
Material cover	Glass transparent
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	No
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	Yes
Connectable conductor cross section	1.5 mm²
Surface brushed	No
Colour of light	White
Adjustability	Rotatable
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	Yes
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Colour consistency (McAdam ellipse)	SDCM3
Rated ambient temperature according to IEC62722-2-1	-20 °C
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Light distributor	Diffuser lens/optic/panel
Suitable for low voltage cable system	No
Dimming DSI	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	106
Max. number of luminaires per miniature circuit breaker B16	66
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)	61 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	48.8 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)	23.2 %
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	No
Suitable for ceiling mounting	Yes

Downloads

Product data sheet Mounting instruction

Description

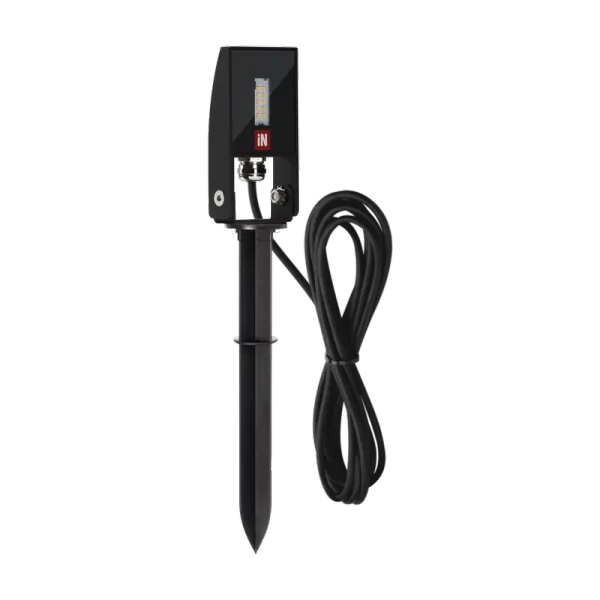

LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van gelakt spuitgietaluminium, kleine afmetingen. Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. Scheurbestendige kabelklem M16x1.5 voor kabels Ø 5 - Ø 10 mm. LED moduul voor netspanning 220-240V 50/60Hz beschermd tegen overbelasting tot 500 V. Externe schroeven van roestvrij staal. Gelakte aluminium beugel. De SPIDER+ 10 KIT versies zijn voorzien van een technopolymeren grondpen en 3 meter H05RN-F 3G1 mm² kabel.
