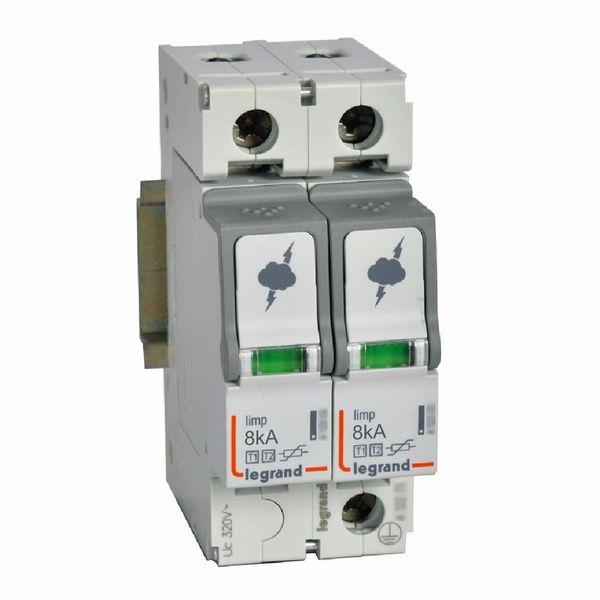

SPD - protection of main distribution board - T1+T2 - limp 8 kA/pole - 2P
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
50,11 €
per pcs
EAN: 3414970518224
MPN: 412251
Package: 1
Box: 20
Pallet: 400
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SPD - protection of main distribution board - T1+T2 - limp 8 kA/pole - 2P |
| Brand | Legrand |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin | PL |
| Harmonized System Code | 8535 4000 00 |
| Voltage protection level | 1.7 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage AC | 230 V |
| Degree of protection (IP) | IP20 |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 3414970518224 |
| Packing level 2 | 3414970518231 |
| Packing level 3 | 3414970595492 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 2 |
| Construction size | 2 modular spacing |
| Max. continuous voltage AC | 320 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| System configuration TN-C | No |
| System configuration TN-S | Yes |
| System configuration TT | No |
| System configuration other | No |
