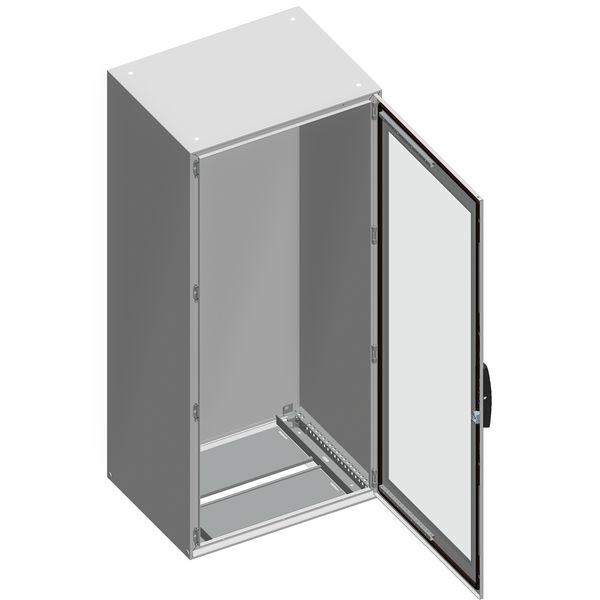

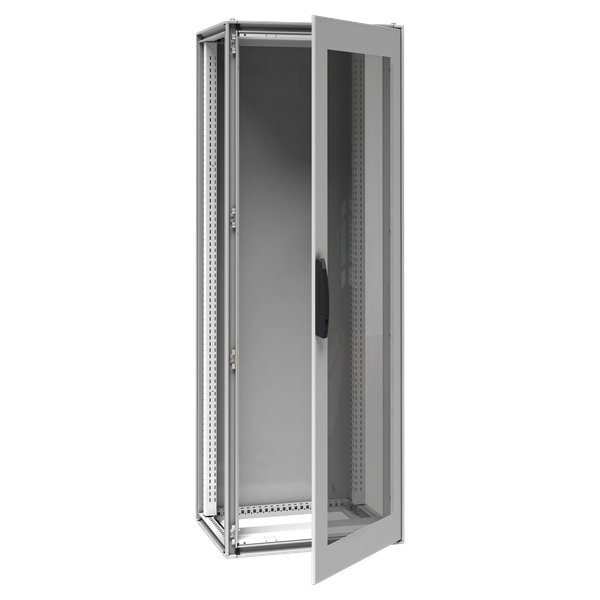

Spacial SFP 2000x700x600mm, IP 55, RAL7035, glazed door for Prisma P system
Order only
Price (excl. VAT):
1 542,28 €
EAN: 3606480211416
MPN: NSYSFP20760T
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Spacial SFP 2000x700x600mm, IP 55, RAL7035, glazed door for Prisma P system |
| Brand | Schneider Electric |
| Categories |
Electrical Enclosures
|
| Country of origin | FR |
| Degree of protection (IP) | IP55 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 0 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Packing details
| Packing level 1 | 3606480211416 |
Other Technical data
| Colour | Grey |
| Width | 700 mm |
| Height | 2000 mm |
| Depth | 600 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of locks | 1 |
| EMC-version | No |
| With glazed door | No |
| Material quality | Other |
| Material | Steel |
| Impact strength | IK10 |
| Suitable for outdoor set-up | No |
| Suitable for metrical mounting | Yes |
| Mounting plate depth-adjustable | No |
| With ventilation door | No |
| Surface finishing | Powder coating |
| With rear door | No |
| Suitable for wall built-in | No |
| Pitched roof | No |
| Pole fastening | No |
| Degree of protection (NEMA) | 12 |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
Downloads
Description
Spacial SF suitable steel enclosure with glazed front door. 2000 x 700 x 600 mm. Assembled. Screw fixed rear panel. Without mounting plate. 4-point closure system with handle and 5 mm double bar lock insert. Galvanised steel for frame and uprights. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
