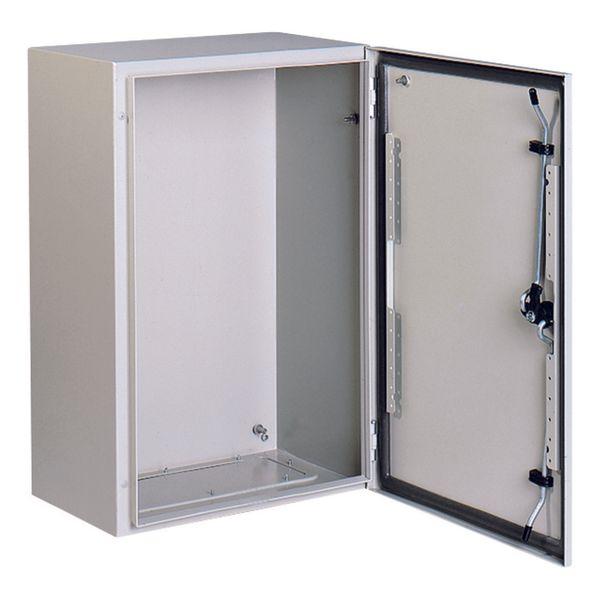

Spacial S3DEX (ATEX certified) H400xW400xD200 .IP66 IK10 RAL7035.
Order only
Price (excl. VAT):
134,06 €
EAN: 3606480158643
MPN: NSYS3DEX4420
Package: 1
Pallet: 40
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Spacial S3DEX (ATEX certified) H400xW400xD200 .IP66 IK10 RAL7035. |
| Brand | Schneider Electric |
| Categories |
Electrical Enclosures
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Degree of protection (IP) | IP66 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 0 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Packing details
| Packing level 1 | 3606480158643 |
| Packing level 2 | 3606480158643 |
Other Technical data
| Colour | Grey |
| Width | 400 mm |
| Height | 400 mm |
| Depth | 200 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Number of doors | 1 |
| Number of locks | 1 |
| EMC-version | No |
| With glazed door | No |
| Material quality | Other |
| Material | Steel |
| Impact strength | IK10 |
| Suitable for outdoor set-up | No |
| Suitable for metrical mounting | Yes |
| Mounting plate depth-adjustable | No |
| With ventilation door | No |
| Surface finishing | Powder coating |
| With rear door | No |
| Suitable for wall built-in | No |
| Pitched roof | No |
| Pole fastening | Yes |
| Degree of protection (NEMA) | 4X |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
Downloads
Description
Spacial S3DEX (ATEX certified) compact enclosure. H is400xW is400xD is200 mm. For potential explosive atmosphere. No mounting plate or cable gland included. 1 front face/door. Wall mounting installation. Gutter-shaped front rail double sheet thickness particularity. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035. Marking is II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC.
