Spacial CRNG dbl plain door w/o mount.plate. H1200xW1000xD300 IP55 IK10 RAL7035
Order only
Price (excl. VAT):
Price by request
EAN: 3606480298295
MPN: NSYCRNG1210300D
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Spacial CRNG dbl plain door w/o mount.plate. H1200xW1000xD300 IP55 IK10 RAL7035 |
| Brand | Schneider Electric |
| Categories |
Electrical Enclosures
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Degree of protection (IP) | IP55 |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 0 W |
| Max. permissible load of the enclosure according to IEC 62208 | 0 N |
| Max. permissible load of the door(s) according to IEC 62208 | 0 N |
Packing details
| Packing level 1 | 3606480298295 |
Other Technical data
| Colour | Grey |
| Width | 1000 mm |
| Height | 1200 mm |
| Depth | 300 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Number of doors | 2 |
| Number of locks | 1 |
| EMC-version | No |
| With glazed door | No |
| Material quality | Other |
| Material | Steel |
| Impact strength | IK10 |
| Suitable for outdoor set-up | No |
| Suitable for metrical mounting | No |
| Mounting plate depth-adjustable | No |
| With ventilation door | No |
| Surface finishing | Powder coating |
| With rear door | No |
| Suitable for wall built-in | No |
| Pitched roof | No |
| Pole fastening | Yes |
| Degree of protection (NEMA) | 12 |
| Max. permissible load of the mounting plate according to IEC 62208 | 0 N |
Downloads
Description

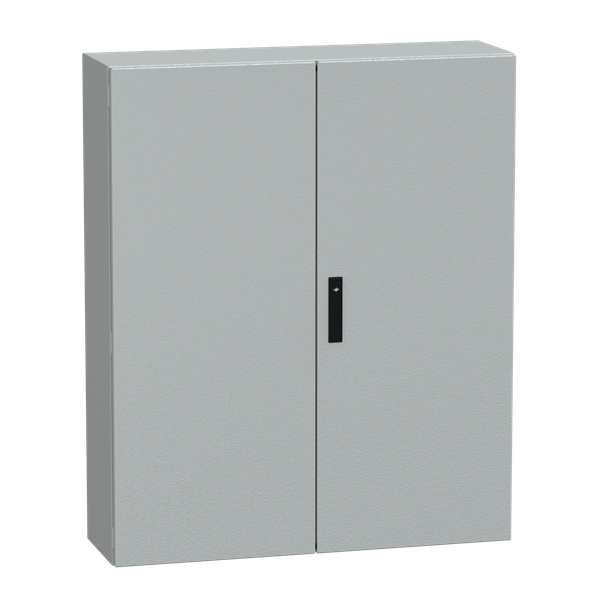

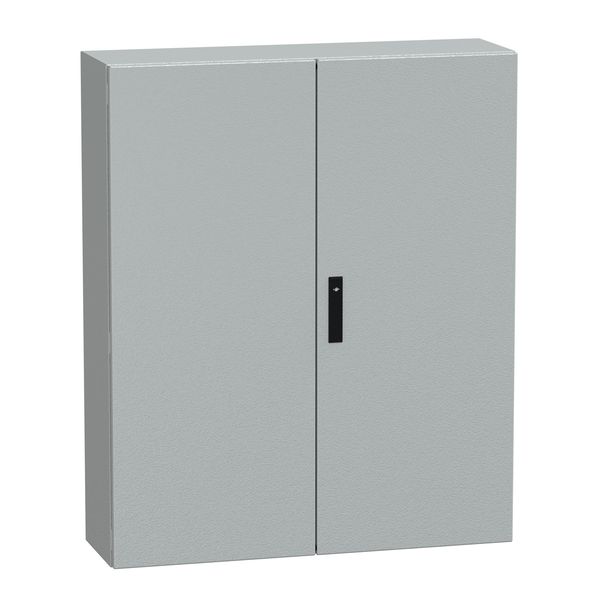

Spacial CRN wall mounted steel enclosure with plain door. 1200 x 1000 x 300 mm. Compact enclosure wall mounting without mounting plate. Reversible (120°) glazed door type. Sides made from a single folded section. Back welded with double profile forming a protected sealed area. 3 mm double-bar lock. Body and door made in steel with security glass. Surface finish in epoxy polyester powder. Grey (RAL 7035). Degree of protection IP66 and IK08.
