SpaceLogic Controller, I/O module, 8 Form C relay digital outputs

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	SpaceLogic Controller, I/O module, 8 Form C relay digital outputs
Brand	Schneider Electric
Country of origin*	SE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC001581
Mounting method	Other
Number of inputs	0
Number of outputs	8
Bus system KNX	No
With bus connection	Yes
Width in number of modular spacings	5
Other bus systems	None

Packing details

Packing level 1

7332552009709

Other Technical data

Bus system radio frequent	No
Bus system Powernet	No
Bus system LON	No
Local operation/hand operation	No
Degree of protection (IP)	IP20
Bus system KNX radio	No

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration)

Description

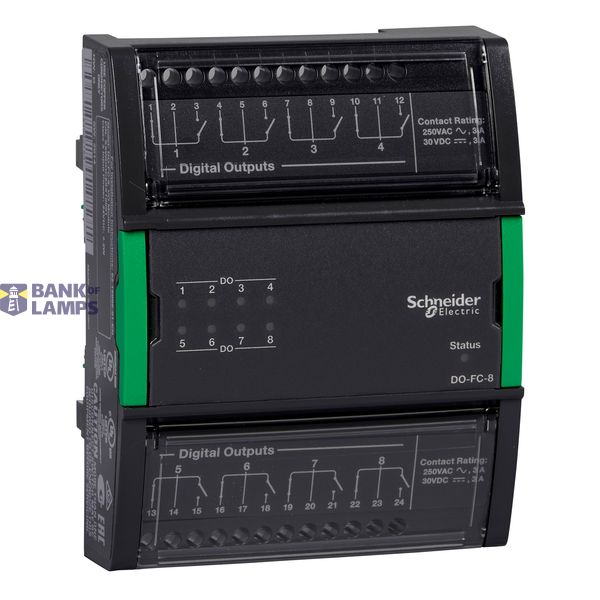

The SpaceLogic DO-FC-8 is a digital output 8 channel I/O expansion module for the SpaceLogic AS-P Server. The digital outputs support digital Form C point types designed for direct load applications. The DO-FC-8 I/O expansion module features 8 Form C digital outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).
