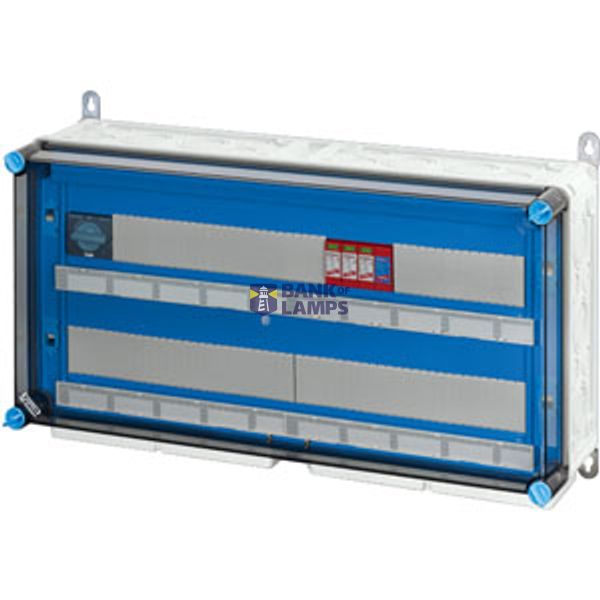

Solar inverter collector with type 2 surge protection device 30kVA, 1 and 3-phase inverters
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Solar inverter collector with type 2 surge protection device 30kVA, 1 and 3-phase inverters |
| Brand | HENSEL |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000214 |
| Housing material | Plastic |
| Degree of protection (IP) | IP65 |
| Cover model | Closed |
Packing details
| Packing level 1 | 4012591117896 |
Other Technical data
| Colour | Grey |

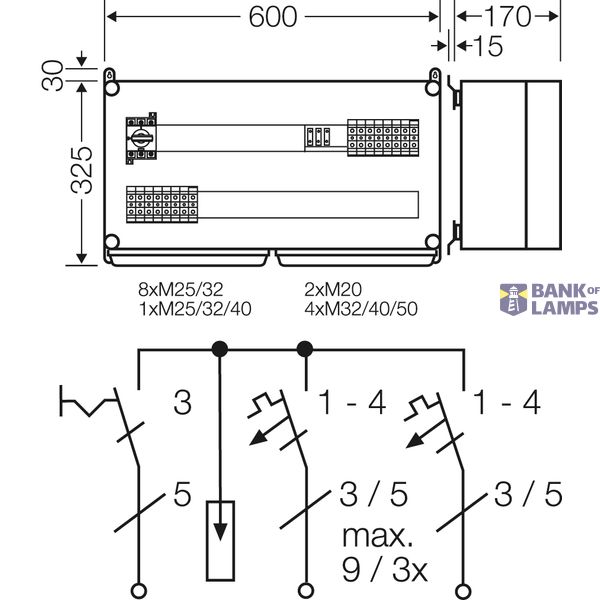

| Width | 600 mm |
| Height | 325 mm |
| Depth | 170 mm |
| RAL-number | 7035 |
| With mounting plate | No |
| Built-in depth | 93 mm |
| Number of rows | 2 |
| Type of cover | Cover |
| EMC-version | No |
| Extension possible | Yes |
| Inner depth | 146 mm |
| DIN-rail | Yes |
| Width in number of modular spacings | 28 |
| Transparent cover/door | Yes |
| With lock | No |
Description
Inverter collector according IEC 61439 for PV systems are delivered as a complete set. Enclosure made of high quality thermoplastics are totally insulated, degree of protection IP 54/IP 65. Inverter collectors can be expanded by a lighting and overvoltage protection function or residual current protection (RCD). They are suitable for unprotected outdoor installation and are UV-resistant. PV inverter collector up to 30 kVA with circuit breaker box and AC surge arrester type 2. Max. 9 x 1~ inverter for 3 x 3~ inverters. Lid fsteners for hand operation. Wall fastening with external brackets made of stainless steel.
