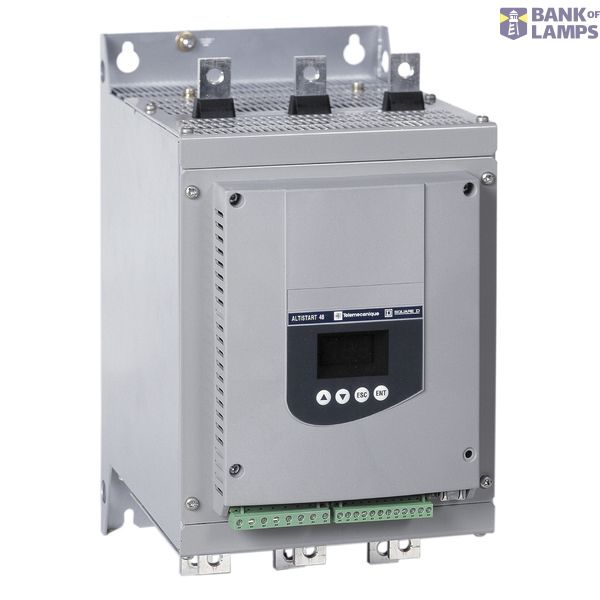

soft starter for asynchronous motor, ATS48, 156 A, 208..690 V, 37..160 KW

Name: soft starter for asynchronous motor, ATS48, 156 A, 208..690 V, 37..160 KW
Brand: Schneider Electric
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	soft starter for asynchronous motor, ATS48, 156 A, 208..690 V, 37..160 KW
Brand	Schneider Electric
ETIM	EC000640
Rated operating voltage Ue	208-690 V
Rated operation current Ie at 40 °C Tu	170 A
Rated power three-phase motor, inline, at 230 V	45 kW
Rated surrounding temperature without derating	40 °C

Packing level 1

3606480621444

Function	Single direction
With display	No
Rated control supply voltage at AC 50 Hz	110-230 V
Rated control supply voltage at AC 60 Hz	110-230 V
Degree of protection (IP)	IP20
Release class	Other
Rated power three-phase motor, inline, at 400 V	90 kW
Rated power three-phase motor, inside delta, at 230 V	0 kW
Rated power three-phase motor, inside delta, at 400 V	0 kW
Integrated motor overload protection	Yes
Voltage type for actuating	AC
Internal bypass	No
Torque control	Yes

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Instructions for use
