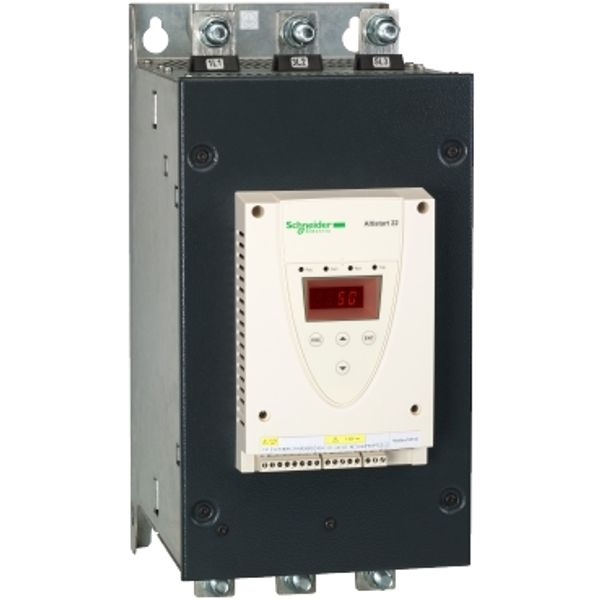

Soft starter Altistart ATS22 210A 230–440V 55/110kW

Order only

Price (excl. VAT):

2 027,12 €

This price is valid until 31.12.25

EAN: 3606480211256

MPN: ATS22C21Q

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Soft starter Altistart ATS22 210A 230–440V 55/110kW
Brand	Schneider Electric
Categories	Soft Starters
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8537 1098 00
Rated operating voltage Ue	230-440 V
Rated operation current Ie at 40 °C Tu	210 A
Rated power three-phase motor, inline, at 230 V	55 kW
Rated surrounding temperature without derating	40 °C

Packing details

Packing level 1

3606480211256

Other Technical data

Function	Single direction
With display	No
Rated control supply voltage at AC 50 Hz	230 V
Rated control supply voltage at AC 60 Hz	220-230 V
Rated control supply voltage at DC	24 V
Degree of protection (IP)	IP20
Release class	Other
Rated power three-phase motor, inline, at 400 V	110 kW
Rated power three-phase motor, inside delta, at 230 V	90 kW
Rated power three-phase motor, inside delta, at 400 V	160 kW
Integrated motor overload protection	Yes
Voltage type for actuating	AC
Internal bypass	Yes
Torque control	Yes

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Instructions for use Technical manual Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 210A and 230V to 440V, a rated power up to 110kW (400V to 440V in supply line) and up to 160kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
