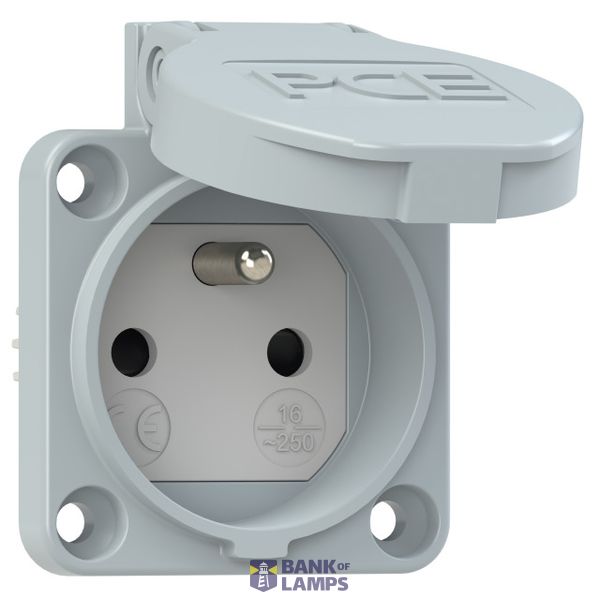

Socket outlet with protective contact 50x50 fb shutter IP54 rear (dark-grey)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Socket outlet with protective contact 50x50 fb shutter IP54 rear (dark-grey)
Brand	PCE
Harmonized System Code	8536 6990 00
ETIM	EC001325
Nominal current	16 A
Nominal voltage	250 V
Colour	Grey
Model	Earthing pin
Halogen free	Yes
RAL-number	7046
With hinged lid	Yes
Material quality	Thermoplastic
Number of poles	3
Material	Plastic
Connection system	Screwed terminal
Angle of plug	Straight
Flange size	50x50 mm
Degree of protection (IP)	IP54
For heavy conditions according to VDE	Yes

Packing details

Packing level 1

9003399484575

Downloads

Product data sheet

Description

Socket outlet with protective earth contact series S-NOVA
housing material: PA6, color: dark grey
flange size: 50x50 mm

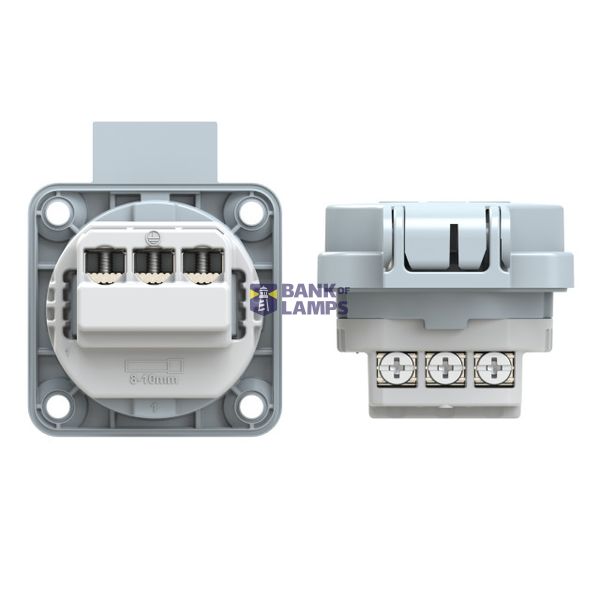

connection technology: screw terminal, rear entry
system: French/Belgian (earth pin) + shutter
contacts: nickel plated
250V / 16A / 2P+E , protection rating: IP54
