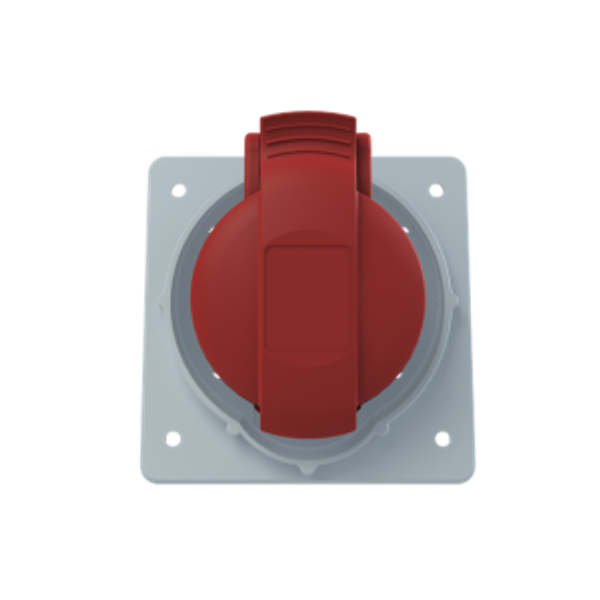

432RAM6 Panel mounted socket
In stock: No
Vendor stock: Yes
Minimal order quantity: 10
Price (excl. VAT):
8,19 €
Subtotal: 81,90 €
MOQ: 10
EAN: 7392696700443
MPN: 2CMA170044R1000
Package: 10
Pallet: 240
Estimate delivery time at our warehouse (approx.):
3-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 432RAM6 Panel mounted socket |
| Brand | Amphenol |
| Categories |
CEE Sockets
|
| Country of origin | CZ |
| Harmonized System Code | 8536 6990 00 |
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage | 32 A |
| Connection system | Screwed terminal |
| Rated voltage | 346-415 V |
Packing details
| Packing level 1 | 7392696700443, 7392696700443, 7392696702423, 7392696700443 |
| Packing level 2 | 7392696700443, 7392696700443, 7392696077996 |
Other Technical data
| RAL-number | 7001 |
| Rated frequency | 50-60 Hz |
| Surface treatment contacts | Untreated |
| Amperage according to UL/CSA (for UL-version) | 32 A |
| Angle of plug | Angled |
| Contact material | CuZn |
| Degree of protection (IP) | IP67 |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Drill hole distance vertical | 75 mm |
| Drill hole distance horizontal | 75 mm |
| Flange size vertical | 99 mm |
| Flange size horizontal | 93 mm |
Description
Zásuvka vestavná šikmá, min. velikost příruby, 5p., 32 A, IP44, 6 h; šedá-červená; 432RAM6
