Socket outlet panel 6S, spring terminals, lgrey
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Socket outlet panel 6S, spring terminals, lgrey |
| Brand | Ensto |
| ETIM | EC000125 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Wall duct |
| Colour | Grey |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 6 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Other |
| Surface protection | Untreated |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| Frequency | 50 Hz |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Other |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Type of fastening | Snap mounting (engagement) |
| Imprint/indication | Other |
| RAL-number (similar) | 7035 |
| Impact strength | Other |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 45 mm |
| Device height | 46 mm |
| Device depth | 407 mm |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 1 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | No |
| Min. depth of built-in installation box | 50 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 6438100336004 |
| Packing level 2 | 6438100336004 |
Description

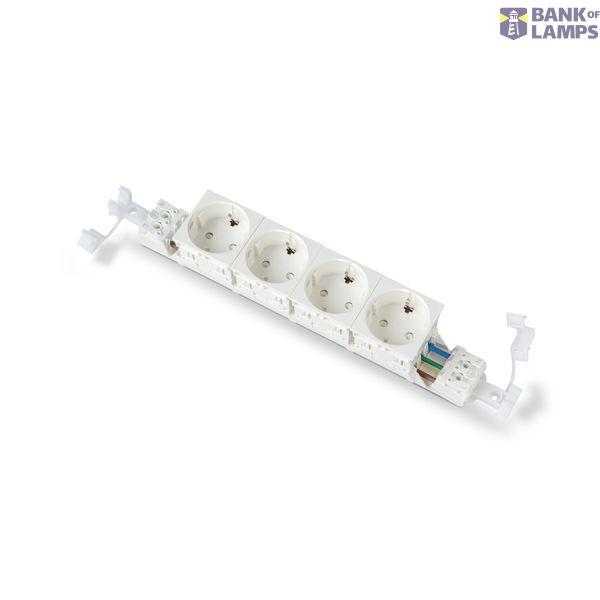

Wall duct schuko socket module. Snap connection to the wall trunking. Quick spring connector installation with integrated strain-relief.
