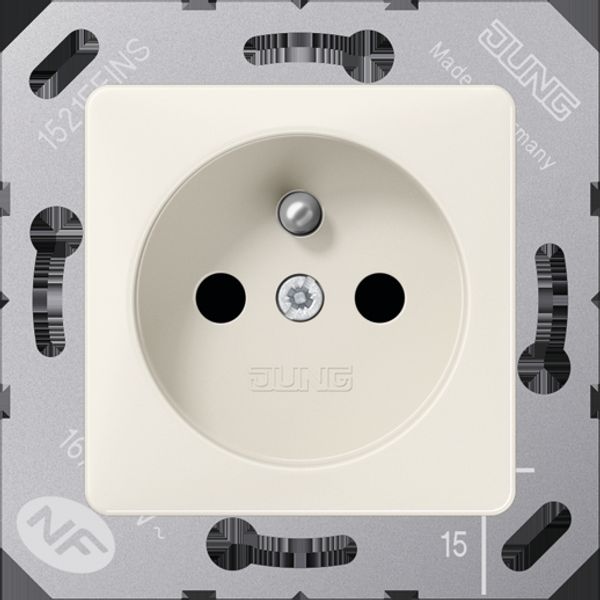

Socket, French/Belgian system 5120FBFKI

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

14,87 €

This price is valid until 31.12.25

EAN: 4011377150713

MPN: 5120FBFKI

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Socket, French/Belgian system 5120FBFKI
Brand	Jung
Categories	Sockets
Country of origin	DE
Harmonized System Code	8536 6990 00
Nominal current	16 A
Nominal voltage	250 V
Mounting method	Flush mounted (plaster)
Halogen free	Yes
Number of units	1
Lockable	No
With hinged lid	No
Connection type	Push-in clamp
Surface protection	Other
With signal lamp	No
Number of phases	1
With enhanced contact protection	Yes
With on/off switch	No
Protective contact	Yes
Label space/information surface	No
Eject-mechanism	No
Material quality	Thermoplastic
Rotated central insert	No
Over voltage protection	No
Fault current protection	No
Special power supply	No special power supply
Insulated mounting	No
Material	Plastic
Type of fastening	Mounting with claw and screw
RAL-number (similar)	1013
Transparent	No
Surface finishing	Glossy
With miniature fuse	No
With loop through function	No
Suitable for degree of protection (IP)	IP20
Device width	50 mm
Device height	50 mm
Number of socket outlets switchable	0
With function lighting	No
With orientation lighting	No
With built-in USB power supply	No
Number of active pins (round)	2
Protective earth pin round	Yes
Anti-bacterial treatment	No

Packing details

Packing level 1	4011377150713
Packing level 2	4011377150713

Downloads

Deep link REACH

Description

Provides standard power connectivity within a switch or electrical distribution system.Flush-mounted unit compatible with the French/Belgian plug system for residential or light commercial use. Halogen-free thermoplastic construction, glossy plastic finish.RAL 1013, beige-like color approximation.Impact protection rating IP20;no hinged lid;mounting via claws and screws directly into plaster-based installations.Nominal current capacity 16 A at a nominal voltage of 250 V.Push-in clamp connection method ensuring secure wiring termination for one-phase systems with protective earth pin present (round).Unit dimensions:Width and height 50 mm each, depth unknown but compact single-unit format designed for flush integration in wall boxes lacking additional built-in space requirements noted here.Enhanced contact safety included by default to minimize accidental touch risk during operation;no USB or lighting features integrated;non-lockable design without miniature fuse, orientation aids, signal lamps, eject functions, or over-voltage/fault-current abilities indicated explicitly from data provided here
