SMD PCB terminal block
Order only
Minimal order quantity: 1500
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SMD PCB terminal block |
| Brand | WAGO |
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001284 |
| Rated voltage | 160 V |
| Rated current In | 9 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4055143541237 |
| Packing level 2 | 4055143541237 |
Other Technical data
| Mounting method | Other |
| Colour | White |
| Number of poles | 1 |
| Operating temperature | -60-105 °C |
| Number of clamp positions per pole | 1 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | No |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Transparent | No |
| Connectable conductor cross section solid-core | 0.2-0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-0.34 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-0.75 mm² |
| Connectable conductor cross section multi-wired | 0.2-0.75 mm² |
| Material insulation body | Thermoplastic |
Description

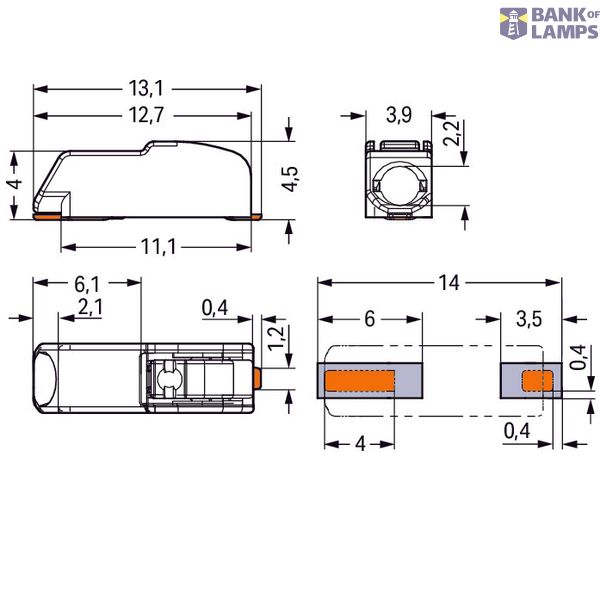

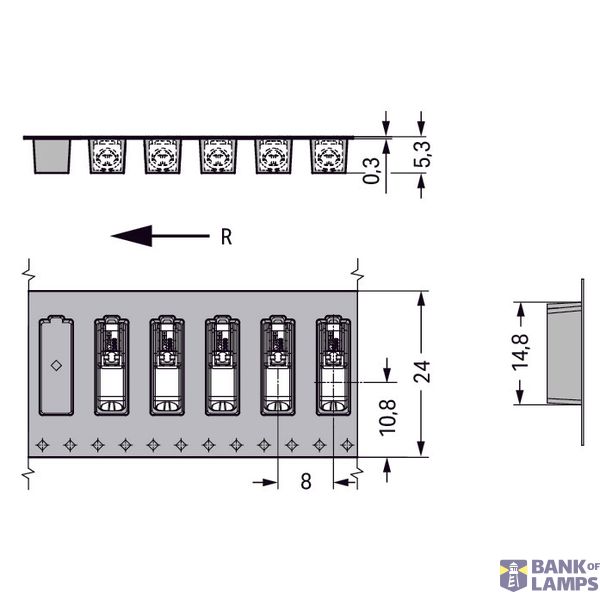

SMD PCB terminal block | push-button | 0.75 mm² | Pin spacing 4 mm | 1-pole | Push-in CAGE CLAMP® | in tape-and-reel packaging
