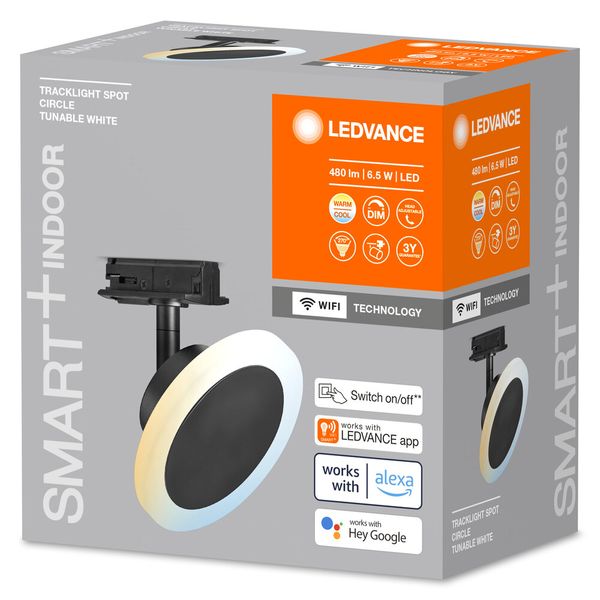

SMART+ TRACKLIGHT CIRCLE Black TW
Order only
Price (excl. VAT):
34,13 €
Split box: 10,00 €
EAN: 4058075759763
MPN: 4058075759763
Package: 1
Box: 4
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SMART+ TRACKLIGHT CIRCLE Black TW |
| Brand | LEDVANCE |
| Categories |
Track lights and accessories
Wall mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9405 1190 00 |
| Width | 120 mm |
| Colour rendering index CRI | 80-89 |
| Length | 95 mm |
| Height/depth | 120 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000-6500 K |
| Max. system power | 6.5 W |
| Rated luminous flux according to IEC 62722-2-1 | 350 lm |
| Luminaire efficacy | 53 lm/W |
Packing details
| Packing level 1 | 4058075759763 |
| Packing level 2 | 4099854114625 |
| Packing level 3 | 4058075759763 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Steel |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Nominal current | 35 |
| Adjustability | Rotating and swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 350 lm |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| LED nominal current at constant current | 35 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 18 |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Power factor | 0.5 |
Downloads
Product data sheet
Others
Instructions for use
Mounting instruction
Declaration DOC CE (Declaration of conformity CE)
Description

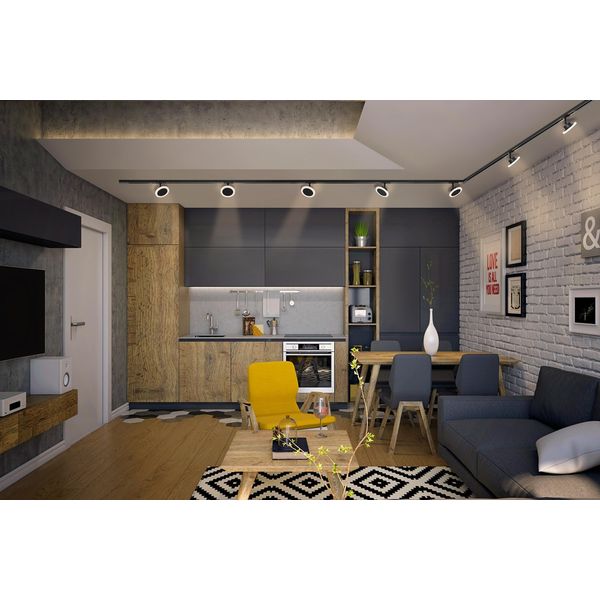

Smart+ tracklight luminaires with WiFi technology TW. Product features: Customisable modular smart tracklight system. Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0). Controllable via voice control available: Google Assistant or Amazon Alexa. Network protocol: WiFi. Dimmable. Product benefits: Can be rotated and swiveled for optimum illumination. Creating individual light scenes according to your needs with cold white to warm white (3000 K to 6500 K). Timeless elegant design. High-quality materials. Areas of application: Kitchens, living rooms, children's rooms or home offices. Entrance areas. Equipment / Accessories: For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0). Complete mounting and connecting accessories included.
