SMALL SL REFLECTOR 57W S/C 830 WIT DALI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4052075214321
MPN: 8726741595310
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SMALL SL REFLECTOR 57W S/C 830 WIT DALI |
| Brand | Performance in Lighting |
| Categories |
Floor lamps
|
| Country of origin | DE |
| Harmonized System Code | 9405 2190 00 |

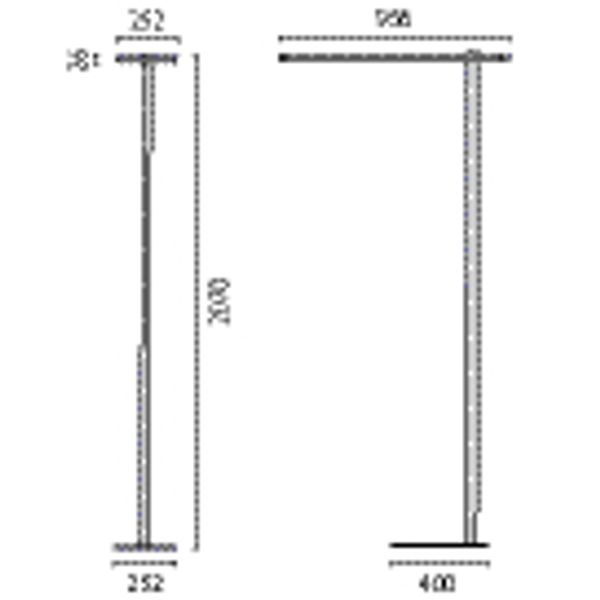

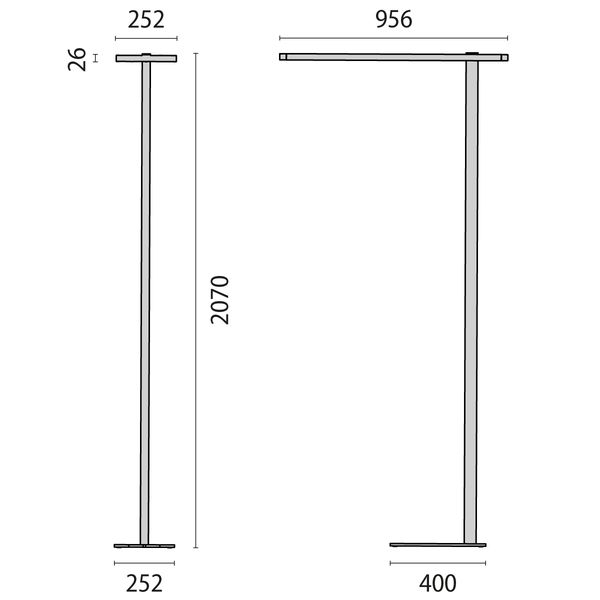

| Width | 956 mm |
| Colour rendering index CRI | 80-89 |
| Length | 252 mm |
| Height/depth | 2070 mm |
| Lamp type | LED exchangeable |
| Nominal voltage | 220 V |
| Colour temperature | 3000 K |
| Max. system power | 61 W |
Packing details
| Packing level 1 | 4052075214321, 4052075214321 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| With dimmer | No |
| Suitable for lamp power | 55 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Adjustable | No |
| With switch | No |
| With light sensor | No |
| Material | Aluminium |
| With presence indicator | No |
| With reflector | No |
| Number of lighting heads | 0 |
| Direct-/indirect proportion separately controllable | No |
| Electrical connection with connector system | Yes |
| Colour cover | White |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Without cover |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Luminaire heads flexible | No |
| With separate reading light | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | Yes |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| Light distributor | Reflector |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Dimming DALI-2 | Yes |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
LED staande lamp voor binnen, bestaande uit: Staander en armatuurribben van geëxtrudeerd aluminium profiel, kopstukken van persgegoten aluminium, voetplaat van plaatstaal, gepoedercoat. Smalle ribben met open tussenruimtes geven het armatuur een uniek licht design. Het armatuur is leverbaar met verschillende optieken: Lichtelement met symmetrisch stralende afzonderlijke lenzen voor een optimale lichtverstrooiing. Lichtelement met hoogglanzende gefacetteerde reflectoren van kunststof voorzien van zeer zuiver aluminium voor maximaal rendement van het armatuur en een neutrale kleurweergave. Directe-indirecte lichtverspreiding. Direct- en indirect aandeel individueel dimbaar via TouchDIM (bij versie met sensor direct en indirect aandeel samen dimbaar via TouchDIM). RA-waarde > 80. Kleurtolerantie volgens MacAdam = 3 SDCM. Anti-verblinding DIN EN 12464-1. Optioneel met aanwezigheidssensor en daglichtregeling. Uitvoering in speciale kleuren op verzoek leverbaar.
