SMALL PL REFLECTOR 58W 3000K WIT D/I
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4052075185775
MPN: 8726441583310
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SMALL PL REFLECTOR 58W 3000K WIT D/I |
| Brand | Performance in Lighting |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

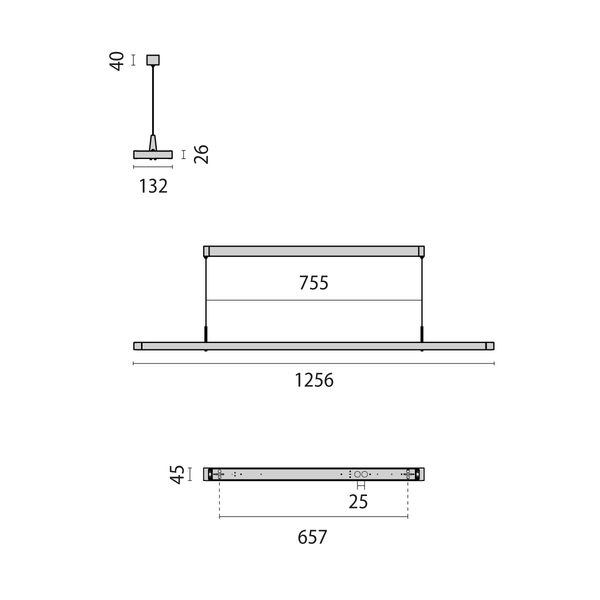

| Width | 132 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1256 mm |
| Height/depth | 26 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 55 W |
Packing details
| Packing level 1 | 4052075185775, 4052075185775 |
Other Technical data
| Protection class | I |
| Reflector | High-gloss |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 50 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Aluminium |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Without cover |
| Pendant length | 150 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Nominal current | 229 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | 1 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Reflector |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
LED-pendelarmatuur voor binnen, bestaande uit: Behuizing van geëxtrudeerd aluminium, kappen van persgegoten aluminium, kap van plaatstaal, gepoedercoat. Smalle ribben met open tussenruimtes geven de armatuur een uniek licht design. Directe-indirecte lichtverspreiding. Lichtelement met hoogglanzende gefacetteerde reflectoren van zeer zuiver aluminium voor maximaal rendement van de armatuur en een neutrale kleurweergave. RA-waarde > 80. Kleurtolerantie volgens MacAdam = 3 SDCM. Incl. ophanging met stalen kabel (1,5 m) en aansluiting aan plafond. Bevestiging van de armatuurbehuizing aan de ophanging met kabel middels clips (geen gereedschap nodig). Stroom wordt via de ophanging met kabel toegevoerd, er is geen extra voedingskabel nodig. Anti-verblinding DIN EN 12464-1. Uitvoering in speciale kleuren op verzoek leverbaar. Kontinu lichtlijnen beschikbaar op de bladzijde www.lightperformer.com.
