SM504T 90S/PW935 DIA-VLC DA25N WH
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SM504T 90S/PW935 DIA-VLC DA25N WH |
| Brand | PHILIPS |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC000986 |

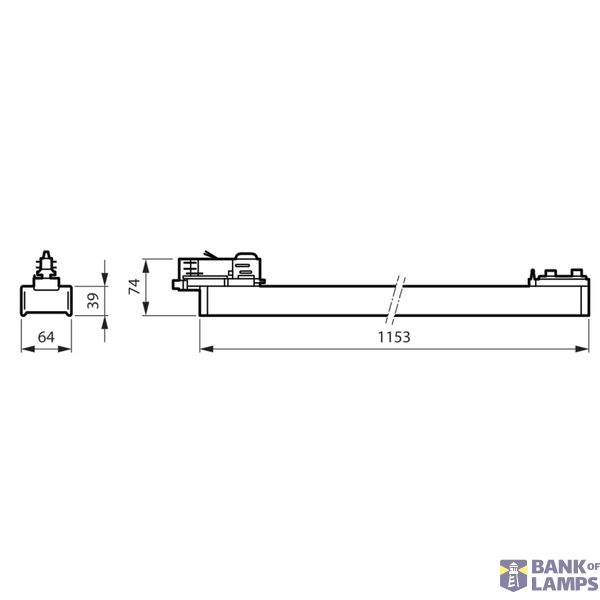

| Width | 64 mm |
| Colour rendering index CRI | 90-100 |
| Length | 1153 mm |
| Height/depth | 74 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Narrow beam 11 - 20° |
| Colour temperature | 3500 K |
| Max. system power | 65 W |
| Rated luminous flux according to IEC 62722-2-1 | 9000 lm |
| Luminaire efficacy | 138 lm/W |
Packing details
| Packing level 1 | 8720169014121 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 5 |
| Housing material | Aluminium |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Double asymmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 4 |
| With control gear | Yes |
| Nominal current | 442 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| LED nominal current at constant current | 283 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description

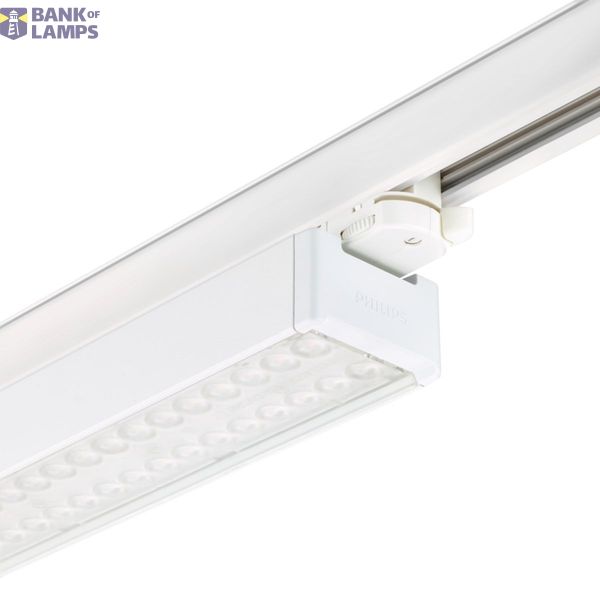

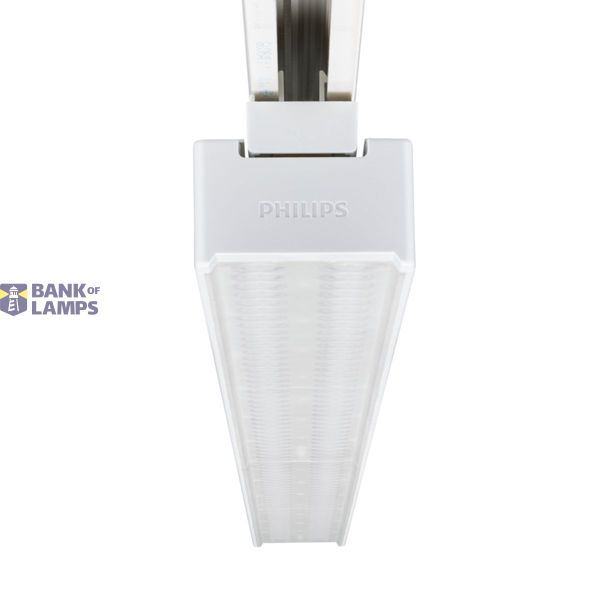

StoreSet Linear is een ultraflexibel lineair armatuur voor railsystemen in de detailhandel, die een uitstekende kwaliteit biedt en in de toekomst nog kan worden verbeterd. In supermarkten en winkels in de binnenstad kan elk lineair paneel worden gecombineerd met een groot aantal spotjes uit ons assortiment. Dit kan soepel worden geïntegreerd in uw bestaande railsysteem. Zo kunt u uw producten in de spotlights zetten, in de schappen, gangpaden en open gebieden.;StoreSet Linear (SM504T) heeft een discreet, slank paneelontwerp zodat u de armaturen eenvoudig overal op de rails kunt plaatsen en eenvoudig wijzigingen kunt maken in de indeling. Versies met een draadloze driver hebben nog meer comfort met opties voor dimmen en het instellen van scènes op de bestaande infrastructuur met een 3-fasen spanningsrail, zonder dat er bedrade regelsystemen nodig zijn. Met de geïntegreerde sensoren voor dataverzameling kunt u informatie inzichtelijk maken om uw bedrijfsproces te ondersteunen.
