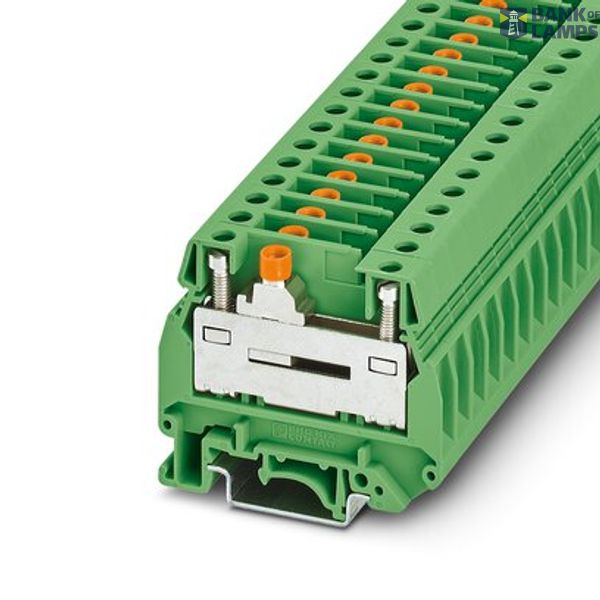

Slide-type terminal block
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Slide-type terminal block |
| Brand | Phoenix Contact |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC000897 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section solid-core | 0.5-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-4 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.5-6 mm² |
| Connectable conductor cross section multi-wired | 0.5-1.5 mm² |
| Rated current In | 41 A |
Packing details
| Packing level 1 | 4046356958257 |
Other Technical data
| Colour | Green |
| Width | 8.15 mm |
| Height | 61 mm |
| Depth | 51.5 mm |
| Operating temperature | -60-105 °C |
| Inflammability class of insulation material according to with UL94 | V2 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Other |
Description
Slide-type terminal block, with slide, nom. voltage: 500 V, nominal current: 41 A, connection method: Screw connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green
