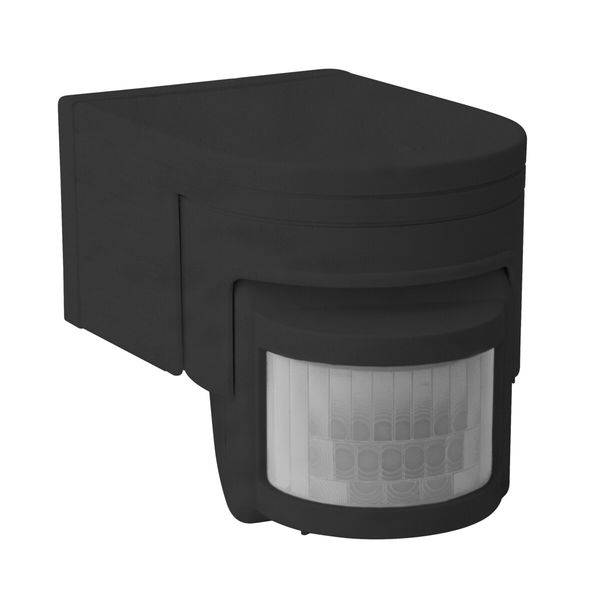

SLICK JQ-L-B PIR motion sensor
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
9,03 €
EAN: 5905339083913
MPN: 8391
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | SLICK JQ-L-B PIR motion sensor |
| Brand | Kanlux |
| Categories |
Sensors
|
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Width | 125 mm |
| Model | Movement sensor |
| Height | 85 mm |
| Depth | 77 mm |
| Connection type | Screwed terminal |
| Frequency | 50 Hz |
| Max. transmission range frontally | 12 m |
| Max. switching power | 1200 W |
| Scan angle | 20 ° |
| Degree of protection (IP) | IP44 |
| Min. switch-on time | 8 s |
| Max. duty cycle | 10 min |
| Response value luminosity adjustable | Yes |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 5905339083913 |
Other Technical data
| Voltage type | AC |
| Diameter | 85 mm |
| Temperature | -10-40 °C |
| Material | Plastic |
| Response value luminosity | 3-2000 lx |
| Detection angle horizontal | 160 ° |
| Suitable for wall mounting | Yes |
Downloads
Description
Kanlux SLICK JQ is a motion detector whose maximum detection range comes to 12 metres. You can set adjustments of the lighting time and light intensity level at which the detector works.
