SL764+ SM 4XL 39 S/A 840 BLACK ON
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
433,22 €
EAN: 4046075157719
MPN: 3117948
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SL764+ SM 4XL 39 S/A 840 BLACK ON |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

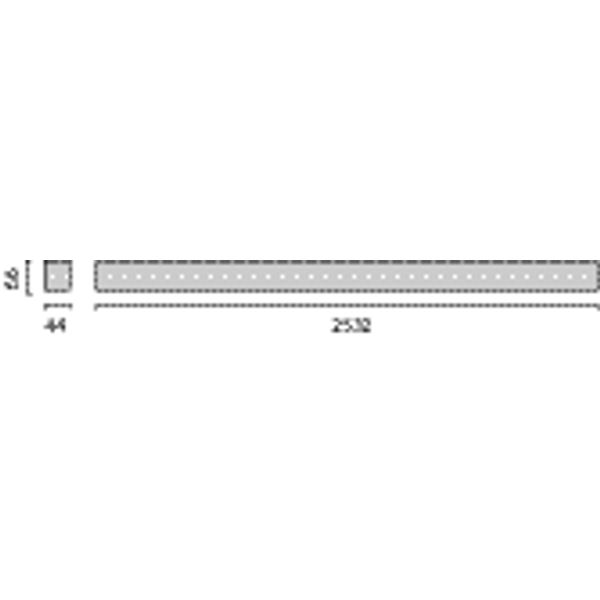

| Width | 44 mm |
| Colour housing | Black |
| Colour rendering index CRI | 80-89 |
| Length | 2532 mm |
| Height/depth | 66 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 44 W |
Packing details
| Packing level 1 | 4046075157719, 4046075157719 |
Other Technical data
| Protection class | I |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 40 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 183 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Through wiring included |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 0 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 28 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 79 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0.8 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
LED opbouwarmatuur voor binnen, bestaande uit: Behuizing van geëxtrudeerd geanodiseerd aluminium profiel(EV1), of met poedercoating, koppen van wit gelakt persgegoten aluminium. Afscherming van opaal PMMA voor een optimale lichtverspreiding en een grote uniformiteit. Directe lichtverdeling. Rechthoekig, eenvoudig ontwerp met verzonken eindkappen. Perfecte afwerking door hoogwaardig uitgevoerde profielverbindingen. Armatuur voorbereid voor doorvoerverbinding. Armaturen kunnen snel en makkelijk worden gemonteerd. Lichtelementen vervangbaar. Kleurtolerantie volgens MacAdam ≤3 SDCM. Veel andere armatuuruitvoeringen en lichtbandconfiguraties zelf samen te stellen via www.light-performer.com.
