SL764+ SL 127 S/D 830 BK9005 IR 2H LV
Order Only
Price (excl. VAT):
1 590,76 €
EAN: 4046075157955
MPN: 3118006
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SL764+ SL 127 S/D 830 BK9005 IR 2H LV |
| Brand | Performance in Lighting |
| Categories |
Floor lamps
|
| Country of origin | DE |
| Harmonized System Code | 9405 2190 00 |

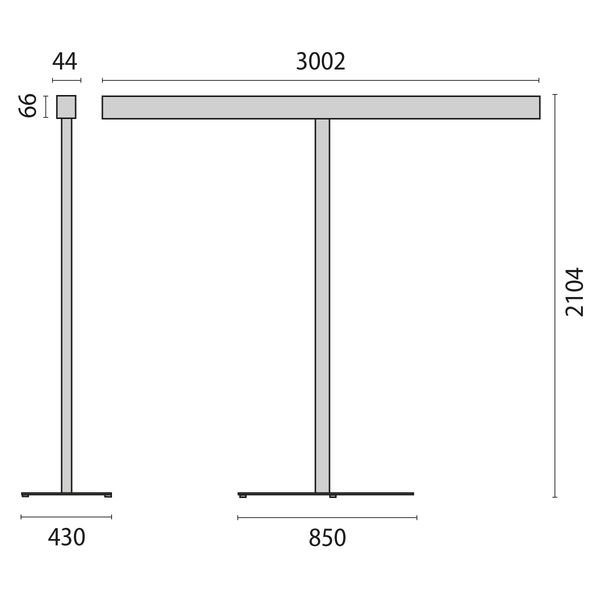

| Width | 44 mm |
| Colour rendering index CRI | 80-89 |
| Length | 3002 mm |
| Height/depth | 66 mm |
| Lamp type | LED exchangeable |
| Nominal voltage | 220 V |
| Colour temperature | 3000 K |
| Max. system power | 141 W |
Packing details
| Packing level 1 | 4046075157955, 4046075157955 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Colour housing | Black |
| Voltage type | AC |
| With movement sensor | Yes |
| With dimmer | No |
| Suitable for lamp power | 127 W |
| Type of grid | Matt |
| Type of control gear | LED operating device current-controlled |
| Adjustable | No |
| With switch | No |
| With light sensor | Yes |
| Material | Aluminium |
| With presence indicator | No |
| With reflector | No |
| Number of lighting heads | 0 |
| Direct-/indirect proportion separately controllable | Yes |
| Electrical connection with connector system | No |
| Colour cover | Other |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Plastic matt/satinized |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Luminaire heads flexible | No |
| With separate reading light | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Staande ledarmatuur met dubbele kop voor binnen, bestaande uit: Armatuurkoppen en voet van geëxtrudeerd aluminium profiel, voetplaat van plaatstaal, gepoedercoat. De handige U-vormige voet maakt een flexibele en vlakke plaatsing van het armatuur bij het bureau mogelijk. Zwart raster voor maximale lichtopbrengst, gereduceerde verblinding en een grote uniformiteit. Directe / indirecte lichtverspreiding. Anti-verblinding DIN EN 12464-1. Geschikt voor verlichting van 2 werkplekken tegelijkertijd. RA-waarde > 80. Optioneel met aanwezigheidssensor en daglichtregeling. Uitgebreid detectiebereik detecteert activiteit over de werkplekken en regelt de armatuurkop (direct en indirect aandeel) parallel. Detectiebereik van de sensor met de schuifregelaar fijn afstelbaar. Direct en indirect lichtaandeel via knoppen afzonderlijk schakel- en dimbaar (beide armatuurkoppen individueel instelbaar). Kleurtolerantie volgens MacAdam ≤3 SDCM. Inclusief flexibele voedingskabel met schuko stekker. Uitvoering in speciale kleuren op verzoek leverbaar.
