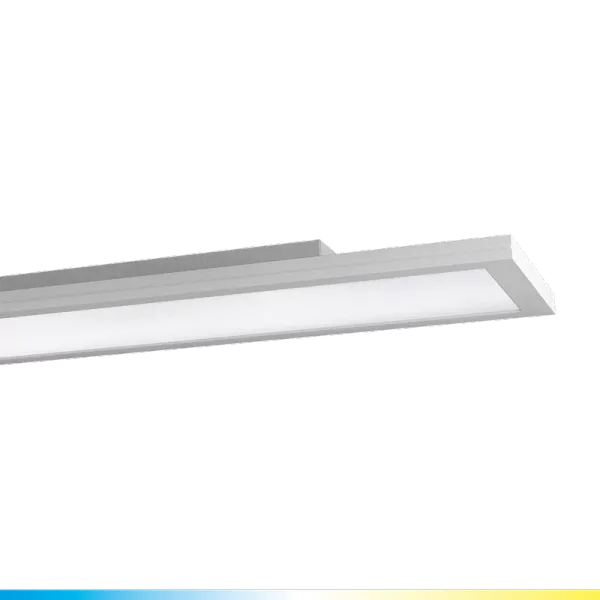

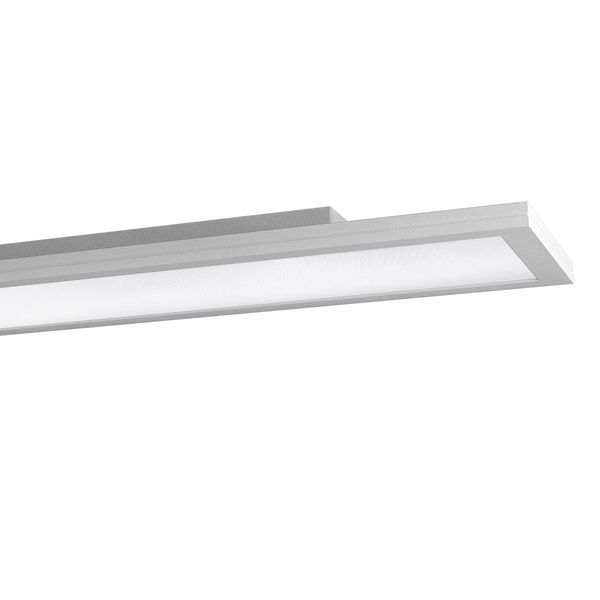

SL720+SM RL 22 S/B 8TW GREY SEIR MP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4046075145426
MPN: 3115919
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | SL720+SM RL 22 S/B 8TW GREY SEIR MP |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

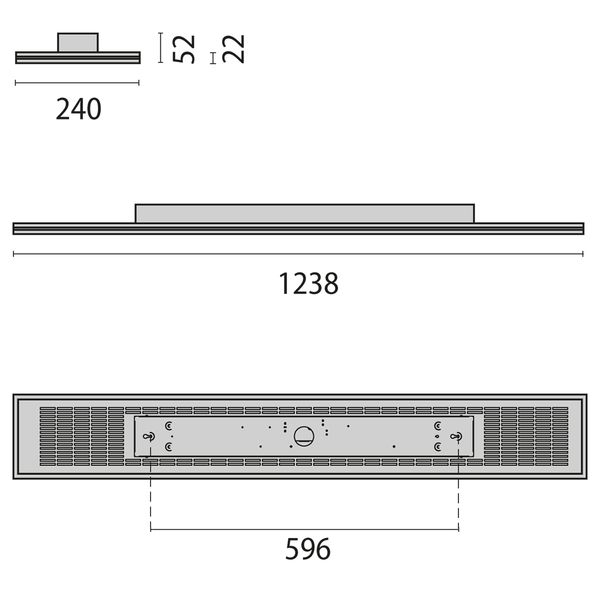

| Width | 240 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 1238 mm |
| Height/depth | 57 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 2700 K |
| Max. system power | 26 W |
Packing details
| Packing level 1 | 4046075145426, 4046075145426 |
Other Technical data
| Protection class | I |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC/DC |
| With movement sensor | Yes |
| Type of control gear | LED operating device current-controlled |
| With light sensor | Yes |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Nominal current | 108 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 10 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 79 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0.8 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | Continuously variable |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
LED opbouwarmatuur voor binnen, bestaande uit: Behuizing van geëxtrudeerd gelakt aluminium. Opbouwframe van plaatstaal, gepoedercoat. Afscherming met micro-prisma's voor een efficiënte lichtverspreiding, gereduceerde verblinding en een grote uniformiteit (MP). LED Sidelight-technologie voor een gelijkmatige lichtverdeling over de gehele zone. De ledmodules kunnen eenvoudig met slechts enkele handelingen achteraf worden vervangen (ook mogelijk zonder elektricien). Lichtdiffusie, direct met een subtiele achtergrondverlichting. RA-waarde > 80. Kleurtolerantie volgens MacAdam ≤3 SDCM. Ook leverbaar in dim push button. Met de bluetoothbesturing 'OSRAM BT Control' kan de verlichting heel eenvoudig via verschillende parameters vanuit de app worden geconfigureerd, gepersonaliseerd of gegroepeerd. Bij de Tunable-White-versie kunnen het niveau van de verlichtingssterkte en de lichtkleur van 2.700 K tot 6.500 K, afhankelijk van het tijdstip (DALI DT8), handmatig worden geregeld. Bij de HCL-versie kunnen het niveau van de verlichtingssterkte en de lichtkleur van 2700 K tot 6500 K, afhankelijk van het tijdstip (DALI DT8), handmatig worden geregeld. Optioneel met aanwezigheidssensor en daglichtregeling. Anti-verblinding DIN EN 12464-1. Uitvoering in speciale kleuren op verzoek leverbaar.
