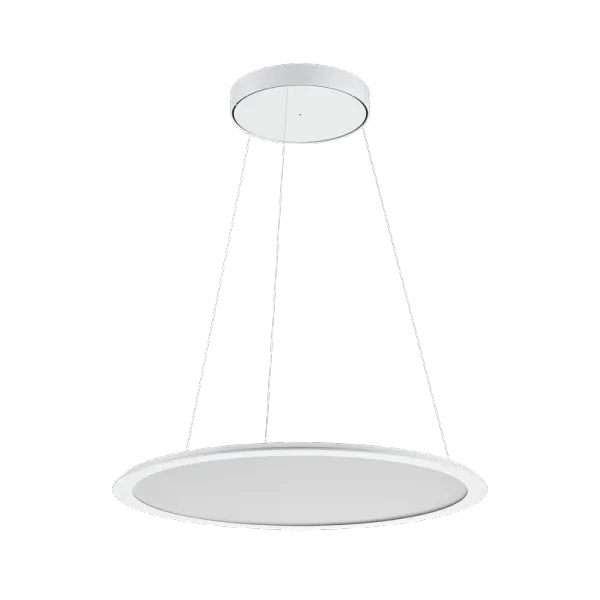

SL713 RM PL 23 S/C 840 WH9016 MP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
458,09 €
EAN: 4052075172089
MPN: 8713461343410
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SL713 RM PL 23 S/C 840 WH9016 MP |
| Brand | Performance in Lighting |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 80-89 |
| Height/depth | 13 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 26 W |
Packing details
| Packing level 1 | 4052075172089, 4052075172089 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 23 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |

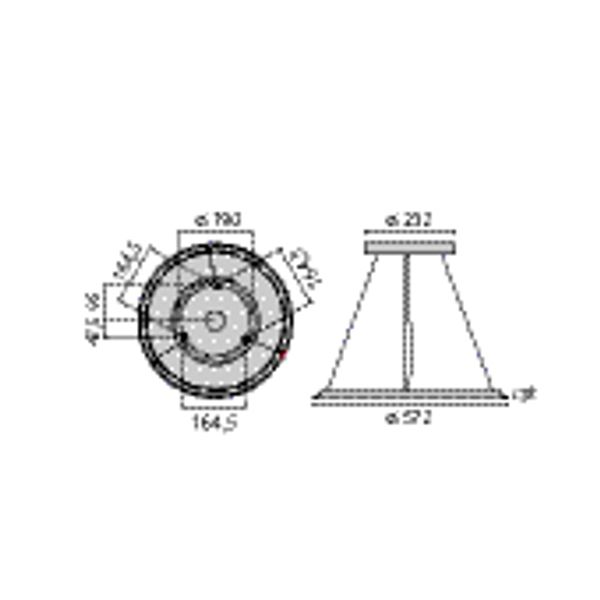

| Diameter | 572 mm |
| Number of poles | 3 |
| Housing material | Aluminium |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Pendant length | 150 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Nominal current | 108 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | 1 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Other |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Rond pendelarmatuur voor binnenshuis, bestaande uit: Aluminium behuizing en kap van plaatstaal, gepoedercoat. Afscherming met micro-prisma's voor een efficiënte lichtverspreiding, gereduceerde verblinding en een grote uniformiteit (MP). Directe/indirecte lichtverspreiding. LED Sidelight-technologie voor een gelijkmatige lichtverdeling over de gehele zone. Kleurtolerantie volgens MacAdam ≤3 SDCM. Incl. ophanging met stalen kabel (1,5 m), transparante voedingskabel en aansluiting aan plafond. Armatuur inclusief driver. Anti-verblinding DIN EN 12464-1. Uitvoering in speciale kleuren op verzoek leverbaar
