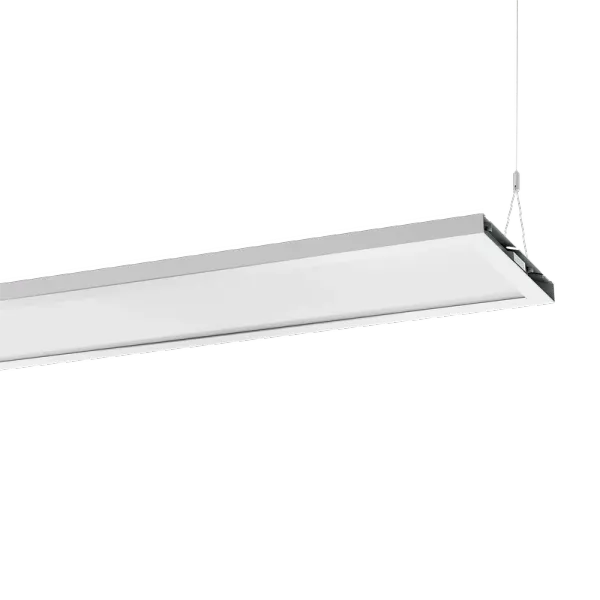

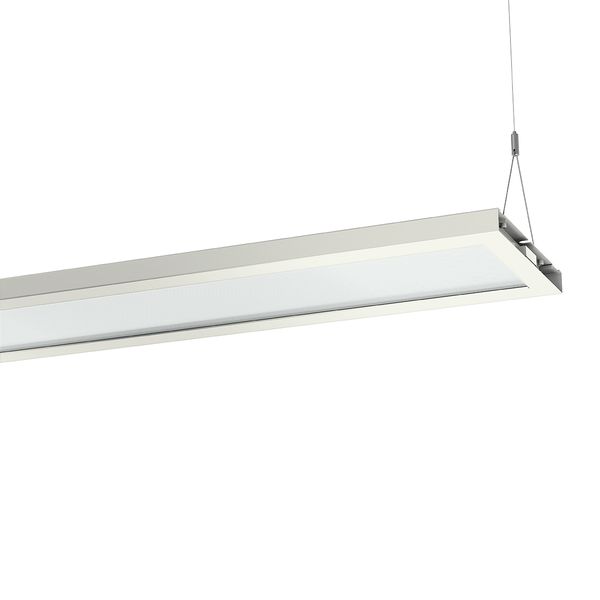

SL629LED CP L 28 S/A 840 WIT MICROPRISMA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
327,32 €
EAN: 4046075042909
MPN: 8629261403418
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SL629LED CP L 28 S/A 840 WIT MICROPRISMA |
| Brand | Performance in Lighting |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 273 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1538 mm |
| Height/depth | 29 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 31 W |
Packing details
| Packing level 1 | 4046075042909, 4046075042909 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Blade terminal |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 28 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Steel |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | Yes |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Pendant length | 300 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | No |
| Suitable for workplace according to EN 12464-1 | Yes |
| Nominal current | 129 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Through wiring included |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | 1 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Other |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 1 |
Downloads
Description
Verlichtingssysteem bestaande uit één of meerdere verlichtingsmodules en afzonderlijk selecteerbare onderdelen. Behuizing van gelakt plaatstaal, met poedercoating. Verbindingsstukken en eindstukken van persgegoten aluminium, gepoedercoat. Prismavormige afdekking voor efficiënte lichtverstrooiing, minimale verblinding en een hoge gelijkmatigheid. Directe of directe/ indirecte lichtverdeling. RA-waarde > 80. Kleurtolerantie volgens MacAdam = 3 SDCM. Ook leverbaar in dim push button. Anti-verblinding DIN EN 12464-1. Uitvoering in speciale kleuren op verzoek leverbaar. De verlichtingscomponenten vindt u in de accessoiretabel.
