Weidmüller

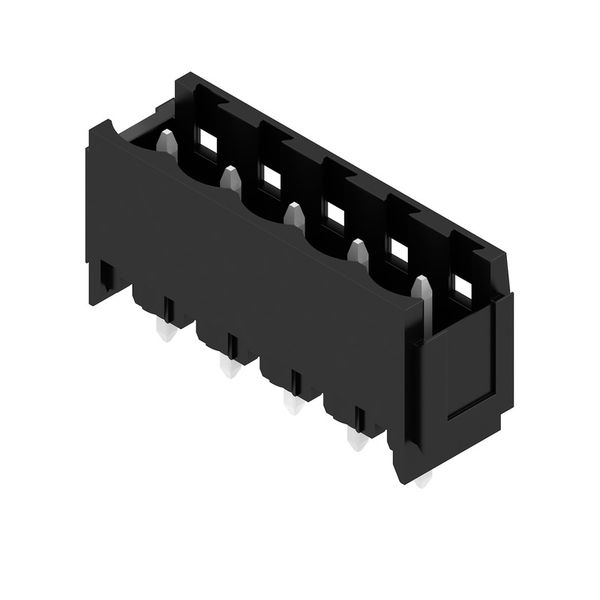

PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 5, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box

Order only Minimal order quantity: 50
Price (excl. VAT):
0,83 €
This price is valid until 24.12.25
Subtotal: 41,50 € MOQ: 50
EAN: 4032248934706
MPN: 1149500000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 5, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
Brand Weidmüller
Categories PCB Connectors & Terminals
Country of origin DE
Harmonized System Code 8536 6990 00
Type of connection Flexible PCB-connector
Rated voltage 320 V
Number of poles 5
Operating temperature -50-100 °C
Rated surge voltage 4 kV
Type of electric connection THR connection
Connector model Fixed connector
Angle PCB/contact 90° (upwards vertical)
Rated current In 21 A

Packing details

Packing level 1 4032248934706

Other Technical data

Colour housing Black
Contact type Pin
Type of fastening Solder
Inflammability class of insulation material according to with UL94 V0
Material of contact surface Tin
Over voltage category II
Pollution degree 2
Length pin 3.2 mm
Modular spacing connections 5.08 mm
Number of plug-in contact rows 1
Type of banding Other
Modular spacing contacts 5.08 mm
Material insulation body Polyamide (PA)
Type of PCB fastening Other

Description

Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
