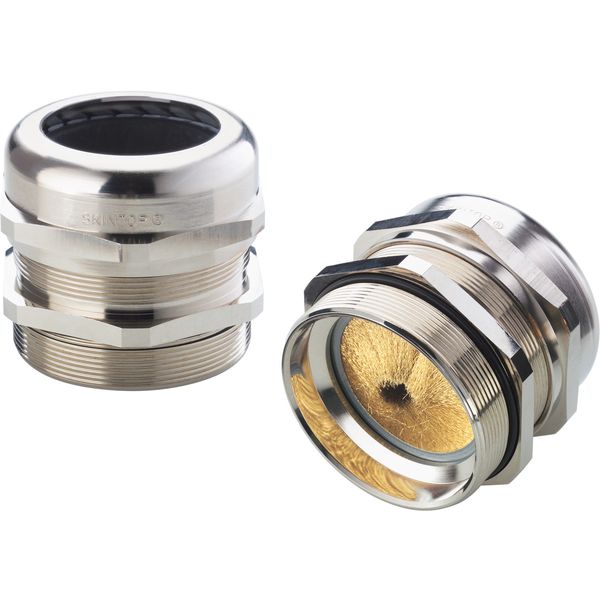

SKINTOP MS-M BRUSH 32x1,5 XL
Order only
Price (excl. VAT):
9,96 €
EAN: 4056155168344
MPN: 53113728
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SKINTOP MS-M BRUSH 32x1,5 XL |
| Brand | LAPP |
| Categories |
Standard Cable Glands
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 7419 8090 00 |
| Model | Straight |
| Thread length | 15 mm |
| Material quality | Brass |
| Thread type | Metric |
| Material | Metal |
| Hexagon angular dimension | 39.6 mm |
| Suitable for cable diameter | 11 mm |
| Degree of protection (IP) | IP68 |
| Nominal thread size metric/PG | 32 |
Packing details
| Packing level 1 | 4056155168344, 4056155168344 |
Other Technical data
| Colour | Brass |
| Halogen free | No |
| Shock resistant | Yes |
| Surface protection | Nickel-plated |
| Bend radius protection/trumpet flare | No |
| With strain relief | Yes |
| Screened | Yes |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Operating temperature | -40 °C |
| Pitch thread | 1.5 mm |
| Explosion-tested version | No |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | No |
| For armoured cable | No |
| Snapping in opening | No |
| Pressure-compensating | No |
| Wrench width | 36 mm |
Downloads
Description
Voordelen; Ook geschikt voor de voortzetting van de kabelafscherming naar een andere aansluiting Optimaal 360°-contact met afscherming,lage contactweerstand Sneller dan vergelijkbare systemen Gebruiksvriendelijk en betrouwbaar Hoogste montagevrijheid bij de kabelafstelling Toepassing; Voor EMV-conforme aarding van koperen omvlechting Automatisering Zware aandrijfsystemen Frequentie-omzetters Transportsystemen
