Rittal

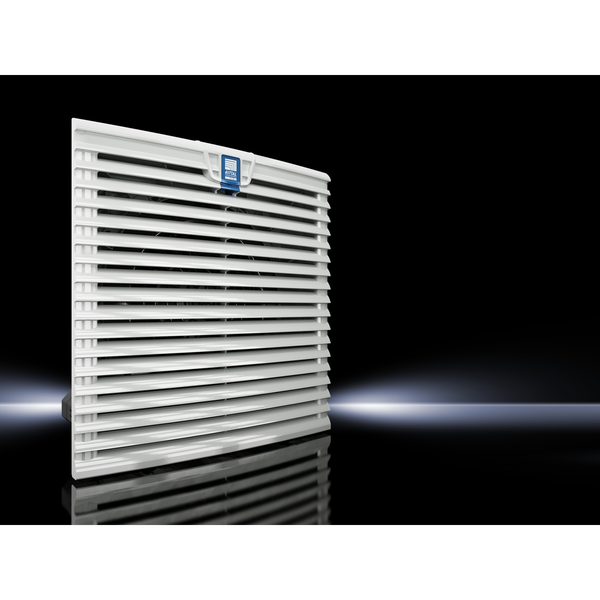

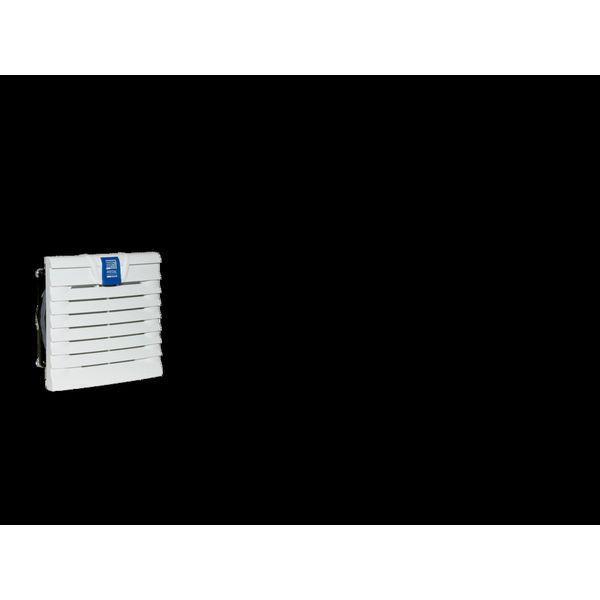

SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm

Order only
Price (excl. VAT):
70,89 € per pcs
This price is valid until 24.12.26
EAN: 4028177651609
MPN: 3237124
Package: 1
Pallet: 288
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name SK TopTherm fan-and-filter unit, 20 m³/h, 24 V (DC), WH: 116.5x116.5 mm
Brand Rittal
Categories Cabinet Cooling and Heating
Country of origin* CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8414 5915 00
Degree of protection (IP) IP54
Volume flow, freeblowing 20 m³/h
Operating voltage at AC 50 Hz 0 V
Operating voltage at AC 60 Hz 0 V
Operating voltage at DC 24 V

Packing details

Packing level 1 4028177651609
Packing level 2 4028177651609

Other Technical data

Mounting method Snap mounting
Colour Grey
Width 116.5 mm
Height 116.5 mm
Depth 59 mm
RAL-number 7035
Voltage type DC
Suitable for 19 inch rack mounting No
Number of fans 1
EMC-version No
With filter Yes
Rated power 3 W
Roof ventilator No
Built as slide-in ventilator No
Air circulator No
Suitable for wall built-in No

Description

SK Filterlüfter 20m³/h 24V DC
