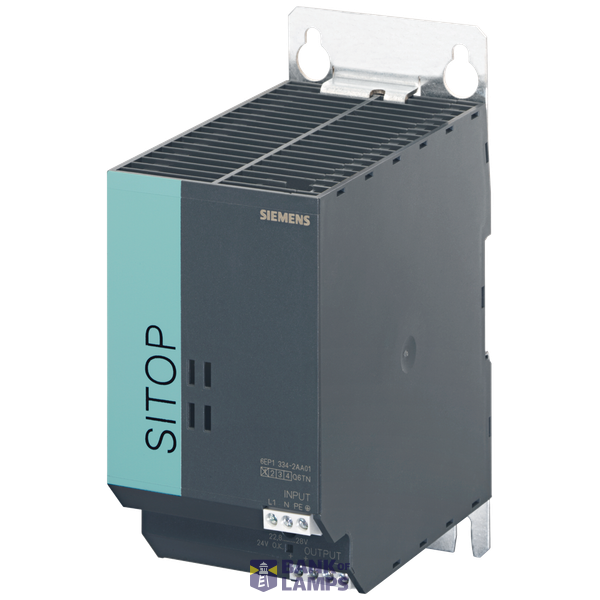

SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 ...

Name: SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 ...
Brand: Siemens
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 ...
Brand	Siemens
Country of origin*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8504 4090 00
ETIM	EC002540
Width	70 mm
Height	125 mm
Depth	125 mm
Voltage type of supply voltage	AC
Power output	288 W
Rail mounting possible	No
Wall mounting possible	Yes
1st secondary output voltage	24 V
Rated supply voltage at AC 50 Hz	230 V
Max. output current 1	12 A
Nominal value output current 1	10 A

Packing level 1

4025515151586

Built-in height	225 mm
Power consumption	0 VA
Built-in width	70 mm
Modular version	Yes
Suitable for safety functions	No
Width in number of modular spacings	0
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	Yes
Secondary voltage adjustable	Yes
Rated supply voltage at AC 60 Hz	120 V
Short-circuit-proof	Yes
Max. output current 2	0 A
Max. output current 3	0 A
Nominal value output voltage 1	24 V
Nominal value output voltage 2	0 V
Nominal value output voltage 3	0 V
Nominal value output current 2	0 A
Nominal value output current 3	0 A

SITOP smart 240 W Stabilized power supply input: 120/230 V AC, output: DC 24 V/10 A Option for for wall mounting
