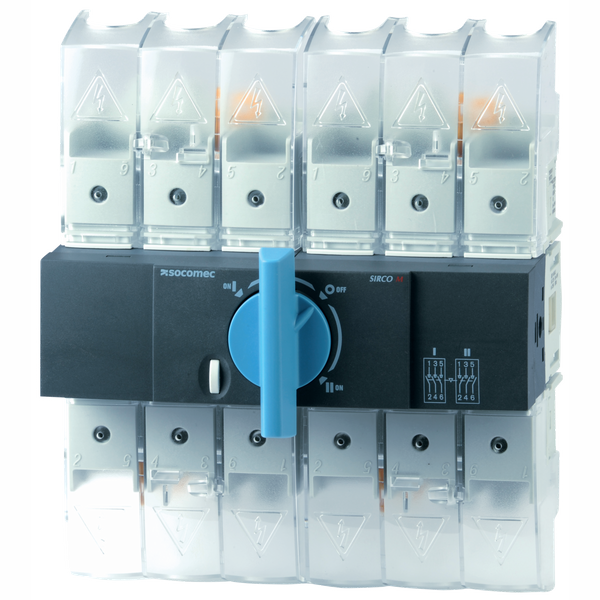

SIRCO M2 CHANGEOVER SWITCH 3X100A
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
207,31 €
EAN: 3596031983346
MPN: 22303009
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SIRCO M2 CHANGEOVER SWITCH 3X100A |
| Brand | Socomec |
| Categories |
Switch Disconnectors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 100 A |
| Number of poles | 3 |
| Rated operating voltage | 400-690 V |
| Degree of protection (IP), front side | IP20 |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | Yes |
| Rated short-time withstand current lcw | 2.75 kA |
Packing details
| Packing level 1 | 3596031983346 |
Other Technical data
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 2 |
| Interlockable | Yes |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Short thumb-grip |
| Rated operation power at AC-23, 400 V | 45 kW |
| Colour control element | Black |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Max. rated operation voltage Ue AC | 800 V |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V | 100 A |
| Switching power at 400 V | 45 kW |
| Version as reversing switch | Yes |
| Degree of protection (NEMA) | Other |
Downloads
Description
Universal load break switch body SIRCO M 3P CD 100A
