SIPLUS S7-300 SM 326, F-DQ 8x24 V DC/2 A PM EN 50155 T1 Cat 1 Cl A/B based on...
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SIPLUS S7-300 SM 326, F-DQ 8x24 V DC/2 A PM EN 50155 T1 Cat 1 Cl A/B based on... |
| Brand | Siemens |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9091 00 |
| ETIM | EC001419 |
| Number of digital inputs | 0 |
| Number of digital outputs | 8 |
| Voltage type of supply voltage | DC |
| Output current | 2 A |
| Type of digital output | Transistor |
| Type of electric connection | Screw-/spring clamp connection |
| Supply voltage DC | 19.2-28.8 V |
| Permitted voltage at output | 0-28.8 V |
| Digital inputs configurable | No |
| Digital outputs configurable | Yes |
Packing details
| Packing level 1 | 4042948520413 |
Other Technical data
| Width | 80 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Input current at signal 1 | 0 mA |
| Suitable for safety functions | Yes |
| Redundancy | Yes |
| Short-circuit protection, outputs available | Yes |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | Level e |
| Type of output voltage | DC |
| SIL according to IEC 61508 | 3 |
Description

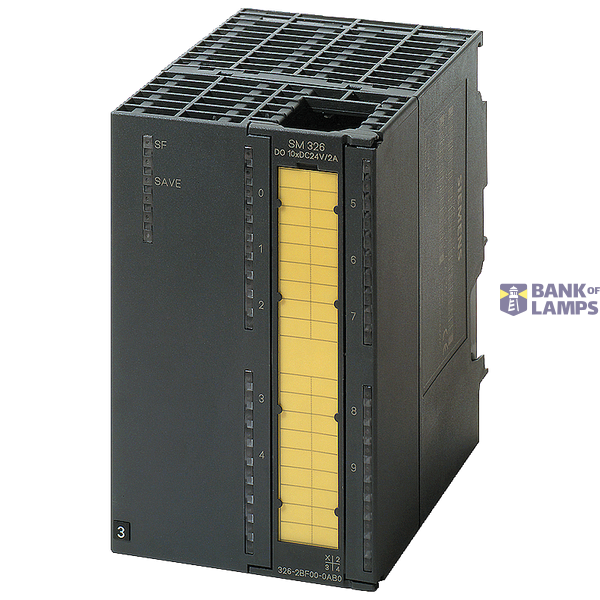

***spare part*** SIPLUS S7-300 SM 326F DQ8 based on 6ES7326-2BF41-0AB0 with conformal coating, -25…+60 °C, digital output F-DQ 8x 24 V DC/2A PM fail-safe digital output sinking-sourcing up to category 4 (EN 954-1), SIL 3 (IEC 61508) Just like the CPU, the digital output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably output.
