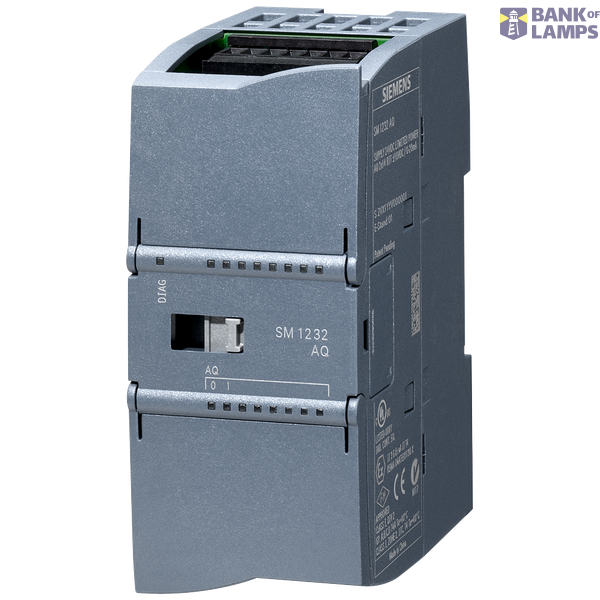

SIPLUS S7-1200 SM 1232, AQ 2x14 bit -25 ... +70 °C with conformal coating bas...
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SIPLUS S7-1200 SM 1232, AQ 2x14 bit -25 ... +70 °C with conformal coating bas... |
| Brand | Siemens |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9091 00 |
| ETIM | EC001420 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 2 |
| Input, current | No |
| Input signal, configurable | No |
| Output, current | Yes |
| Output, voltage | Yes |
| Output signal configurable | Yes |
| Resolution of the analogue inputs | 0 Bit |
| Resolution of the analogue outputs | 14 Bit |
| Analogue inputs configurable | No |
| Analogue outputs configurable | Yes |
Packing details
| Packing level 1 | 4042948514214 |
Other Technical data
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Suitable for safety functions | No |
| Input, voltage | No |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, thermocouple | No |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
Description
***spare part*** SIPLUS S7-1200 SM 1232 2AQ based on 6ES7232-4HB30-0XB0 with conformal coating, -25…+70 °C, analog output +/-10 V: 14-bit resolution or 0-20 mA: 13-bit resolution Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
