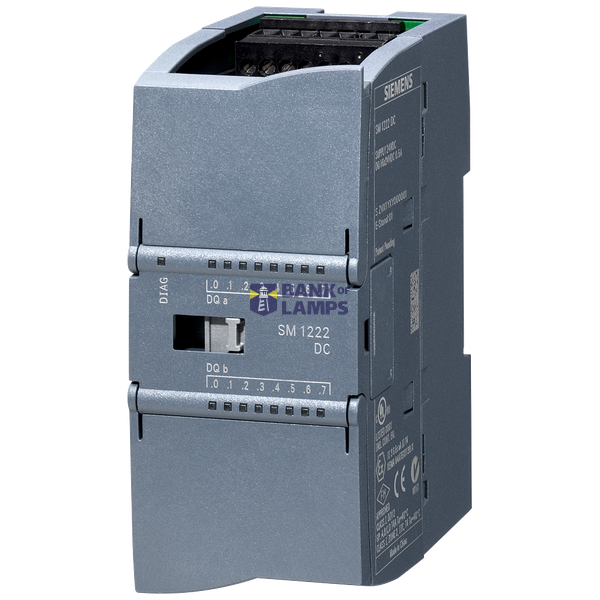

SIPLUS S7-1200 SM 1222, DQ 16x24 V DC/0.5 A -25 ... +70 °C with conformal coa...
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SIPLUS S7-1200 SM 1222, DQ 16x24 V DC/0.5 A -25 ... +70 °C with conformal coa... |
| Brand | Siemens |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9091 00 |
| ETIM | EC001419 |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Voltage type of supply voltage | DC |
| Output current | 0.5 A |
| Type of digital output | Transistor |
| Type of electric connection | Screw connection |
| Supply voltage DC | 20.4-28.8 V |
| Permitted voltage at output | 0-28.8 V |
| Digital inputs configurable | No |
| Digital outputs configurable | Yes |
Packing details
| Packing level 1 | 4042948511046 |
Other Technical data
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Input current at signal 1 | 0 mA |
| Suitable for safety functions | No |
| Time delay at signal exchange | 0.05-0.2 ms |
| Redundancy | No |
| Short-circuit protection, outputs available | No |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Type of output voltage | DC |
Description
***spare part*** SIPLUS S7-1200 SM 1222 16DA based on 6ES7222-1BH30-0XB0 with conformal coating, -25…+70 °C, digital output 16 DQ, 24 V DC, transistor 0.5 A Just like the CPU, the digital output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably output.
