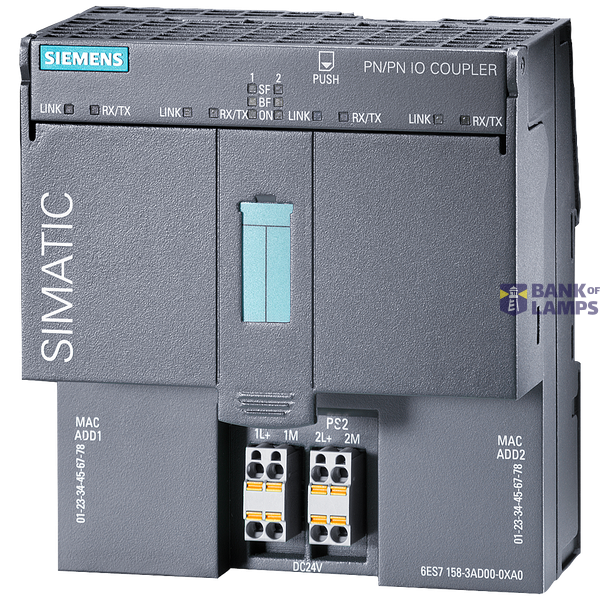

SIPLUS NET PN/PN coupler T1 RAIL with conformal coating based on 6ES7158-3AD0...
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SIPLUS NET PN/PN coupler T1 RAIL with conformal coating based on 6ES7158-3AD0... |
| Brand | Siemens |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8517 6200 00 |
| ETIM | EC001604 |
| Width | 120 mm |
| Height | 119.5 mm |
| Depth | 75 mm |
| Voltage type of supply voltage | DC |
| Rail mounting possible | Yes |
| Rack-assembly possible | Yes |
| Wall mounting/direct mounting | No |
| IO link master | No |
| Supply voltage DC | 20.4-28.8 V |
| Radio standard LTE | No |
Packing details
| Packing level 1 | 4047618078027 |
Other Technical data
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| With potential separation | Yes |
| Fieldbus connection over separate bus coupler possible | No |
| System accessory | Yes |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Front built-in possible | Yes |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | Yes |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Radio standard eGPRS | No |
Description
***spare part*** SIPLUS NET PN/PN coupler T1 rail based on 6ES7158-3AD01-0XA0 with conformal coating, -40…+60 °C, T1: 70 °C for 10 minutes, coupling module for connecting two PROFINET networks transmission via PROFIsafe redundant current infeed The SIPLUS extreme variant also protects the automation system components using the reliable Conformal coating against harsh ambient conditions such as corrosive gases, condensation, frost and biologically, chemically and physically active substances. This reliably protects your automation tasks and provides additional investment security.
