Terminal Clamp for earth rods, Galvanized Steel, D 20mm, for Round Conductor 10mm Fl -30, Clamping Range 70mm²

Order only

EAN: 4013364107427

MPN: 630120

Package: 1

Price (excl. VAT)

6,11 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Single-screw term. clamp f. earth rods St/tZn D 20mm f. Rd 10mm Fl -30
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC001465
Surface protection	Hot-dip galvanized
Construction type	Connection terminal
Material	Steel
Clamping range round conductor	10 mm
Clamp width flat conductor	Up to 30 mm
Clamping range cable	70 mm²

Packing details

Packing level 1

4013364107427, 4013364107427

Downloads

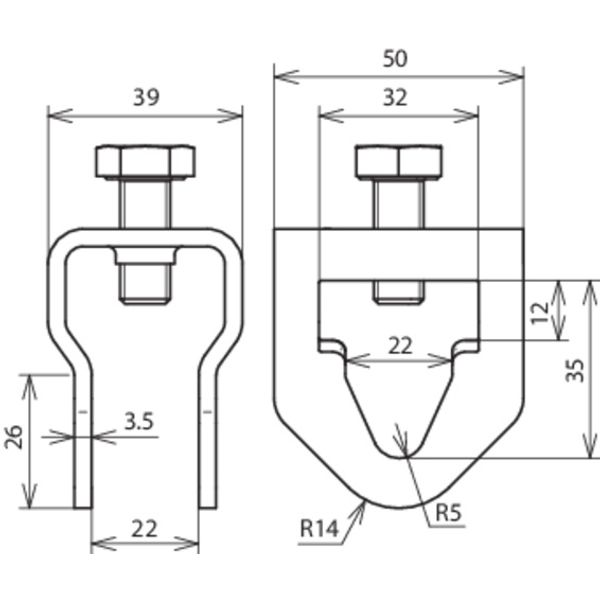

Product data sheet Dimensioned drawing Deep link REACH

Description

Single-screw connection clamp according to EN 62561-1, to connect round conductors, flat strips or cables to earth rods. Type for cross and parallel connection.
