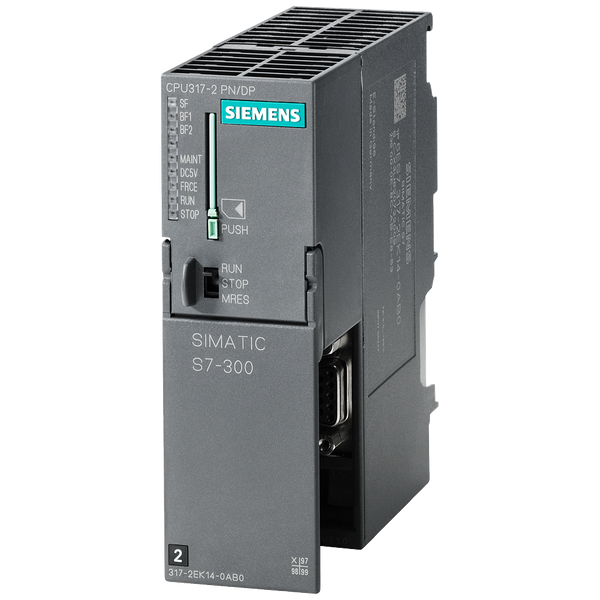

SIMATIC S7-300 CPU 317-2 PN/DP 1 MB
In stock: Yes
Vendor stock: Yes
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
3 847,90 €
per pcs
EAN: 4025515077794
MPN: 6ES7317-2EK14-0AB0
Box: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | SIMATIC S7-300 CPU 317-2 PN/DP 1 MB |
| Brand | Siemens |
| Categories |
PLC Units & I/O Modules
|
| Country of origin | DE |
| Harmonized System Code | 8537 1091 00 |
| Model | Modular |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Memory size | 1024 kByte |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces other | 1 |
| Additional program memory possible | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supply voltage DC | 20.4-28.8 V |
Packing details
| Packing level 1 | 4025515077794 |
Other Technical data
| Width | 40 mm |
| Height | 125 mm |
| Depth | 130 mm |
| With display | No |
| Suitable for safety functions | No |
| Type of memory | RAM |
| Processing time (1K, binary operation) | 0.025 ms |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for other bus systems | Yes |
| Redundancy | Yes |
| Rail mounting possible | Yes |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Yes |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Number of relay outputs | 0 |
| Max. number of time switches | 0 |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | Yes |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Long-Term Evolution (LTE) | No |
| SIL according to IEC 61508 | None |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for DNP3 | No |
| Supporting protocol for IEC 60870 | No |
Description
This component is an optical proximity sensor designed to detect objects or measure distances within a system. It uses infrared light to identify the presence or absence of nearby surfaces and can function as part of automated control, monitoring, or safety applications.
### Sensory Functionality
- Operates using Infrared (IR) technology for non-contact detection.
- Suitable for short-range object detection tasks; limited beyond medium distances.
- Capable of detecting changes in reflected IR light—influenced by material properties and surface angles.
### Electrical Specifications
- Requires standard DC power input—check datasheet for voltage thresholds.
- Features integrated signal processing circuitry for output stabilization.
### Mechanical Integration
- Compact housing suitable for narrow installation spaces.
- Includes pre-mounted connection terminals; verify pin layout before setup.
#### Technical Notes:
- Maximum sensing range varies based on ambient conditions—confirm under field lighting conditions.
- Not optimized for transparent materials; reflections may be inconsistent.
- Overexposure to high external IR sources can cause false positives or reduced sensitivity.
