SIMATIC RF1000 Access Control Reade...
Order only
Discontinued
Price (excl. VAT):
991,76 €
per pcs
EAN: 4034106026240
MPN: 6GT2831-6CA50
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SIMATIC RF1000 Access Control Reade... |
| Brand | Siemens |
| Categories |
RFID
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8471 9000 00 |
| Max. transmission range | 30 mm |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Max. transmission rate, reading | 0 kBit/s |
| Max. transmission rate, writing | 0 kBit/s |
Packing details
| Packing level 1 | 4034106026240 |
Other Technical data
| Width | 90 mm |
| Height | 62 mm |
| Depth | 23.5 mm |
| Diameter | 0 mm |
| Housing material | Plastic |
| Type of voltage (input voltage) | DC |
| Type of electric connection | Plug-in connection |
| Connection for external antenna | No |
| Degree of protection (IP) | Other |
Description

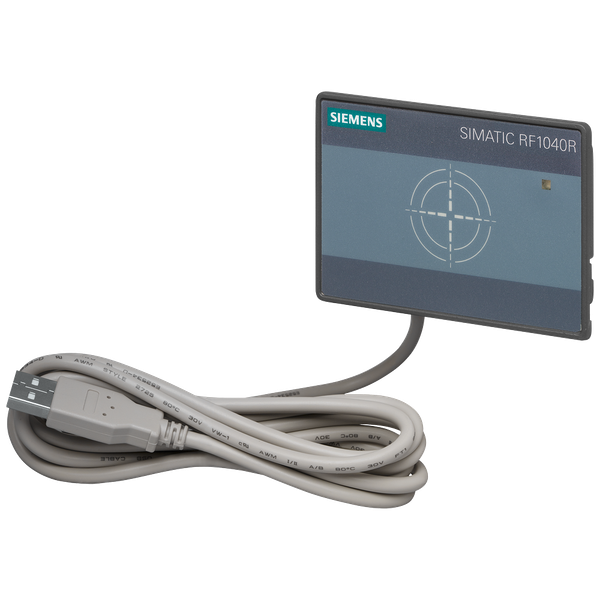

SIMATIC RF1000 Access Control Reader RF1040R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; USB port, inc. RS 232 interface; IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, incl. 1.8 m USB connecting cable . The access control reader supports the standards HiTag 1/2, EM4xxx, IS0 14443 (MIFARE) and ISO 15693. - Individual control of access rights: Only one card, use of existing employee ID cards, thereby checking or tracing the persons and their activities (Audit Trail). - Protected and documented access to machines; prevents incorrect operation. - Easy integration into existing hardware (HMI devices and Panels). - Simple and flexible connection possibilities in control and IT systems. - High degree of protection (IP65 at the front) and temperature range from -25 °C to + 55 °C allow use on machines and plants in harsh industrial environments. - Status display via triple LED. - Integration in applications with limited installation space thanks to the compact design with low installation depth.
