SIMATIC IPC IPC327E Celeron N3160, 4 GB RAM, 256 GB SSD, without operating sy...
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | SIMATIC IPC IPC327E Celeron N3160, 4 GB RAM, 256 GB SSD, without operating sy... |
| Brand | Siemens |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8471 5000 00 |
| ETIM | EC001413 |
| Operating temperature | 0-50 °C |
| Voltage type of supply voltage | DC |
| Degree of protection (IP) | IP40 |
| Supply voltage DC | 20.4-28.8 V |
Packing details
| Packing level 1 | 4034106031176 |
Other Technical data
| Width | 0.254 mm |
| Height | 0.14 mm |
| Depth | 0.075 mm |
| Suitable for safety functions | No |
| With hard disc | Yes |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 6 |
| Number of HW-interfaces RS-422 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 6 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 1 |
| Suitable for operating system Windows 9x | No |
| Suitable for operating system Windows 2000 | No |
| Suitable for operating system Windows XP | No |
| Suitable for operating system Windows ME | No |
| Suitable for operating system Windows CE | No |
| Suitable for operating system Linux | No |
| Suitable for other operating system | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Processor type | Celeron M |
| Max. main memory | 8000000000 MB |
| With floppy disc drive | No |
| With other storage media | No |
| With graphic card | Yes |
| With sound card | Yes |
| Number of free AGP-slots | 0 |
| Number of free PCI-slots | 0 |
| Number of free ISA-slots | 0 |
| Number of free PCMCIA-slots | 0 |
| Number of other free slots | 1 |
| Rail mounting possible | Yes |
| Construction type housing | Box |
| Memory capacity hard disc | 0 TB |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | Yes |
| Suitable for operating system Windows 2003 Server | No |
| Suitable for operating system Windows Vista | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Preinstalled operating system | None |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Suitable for operating system Windows 7 | No |
| Suitable for operating system Windows 8 | No |
| Processor clock rate | 1600000000 GHz |
| Number of storage media bays | 1 |
| With optical drive | No |
Description

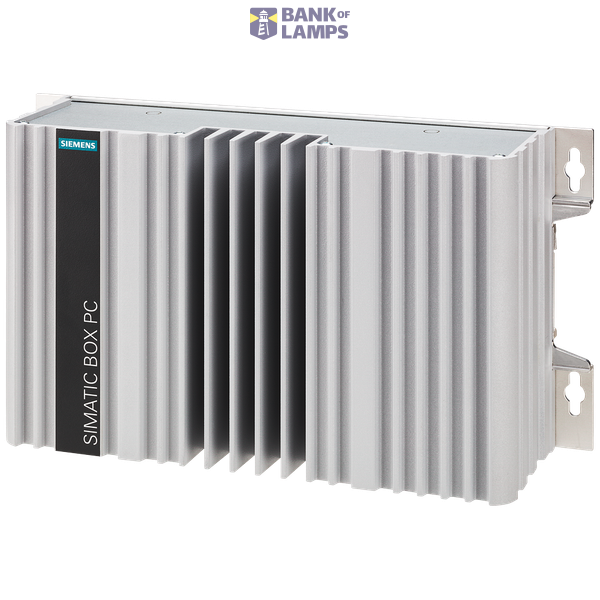

*** no longer available *** SIMATIC IPC327E (Basicbox PC); Celeron N3160 (4C/4T); 4 GB RAM; 256 GB SSD; 1x display port graphic; 1x VGA port graphic; 2x 10/100/1000 Mbps Ethernet RJ45; 2x USB3.0, 4x USB2.0; 6x serial ports (COM); 1x mPCIe slot; 1x mSATA slot; without operating system 24 V DC power supply; DIN-rail mounting, wall mounting The SIMATIC IPC327E Box PC is the basic industrial PC with a compact box design. It can also be flexibly mounted under tight space conditions in control cabinets or directly on the machine and optimally utilizes the existing space. Compact Box PC for space-saving installation, industry-standard mounting options on DIN rail or wall mounting, all of the interfaces on one side of the enclosure for easy access and fanless design of the device.
