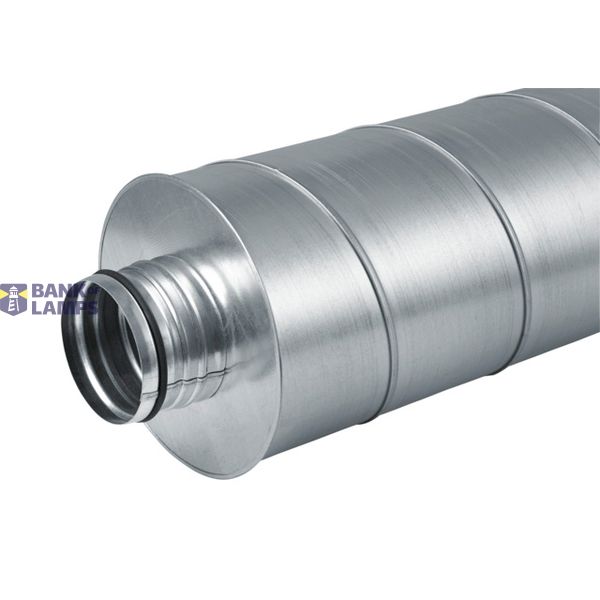

Silencer, LWF S 180 - length 0.9 m
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Silencer, LWF S 180 - length 0.9 m |
| Brand | STIEBEL ELTRON |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8307 1000 00 |
| ETIM | EC011019 |
| Outer diameter | 290 |
| Inner diameter | 180 |
| Nominal duct diameter | 180 mm |
Packing details
| Packing level 1 | 4017212329832, 4017212329832 |
Other Technical data
| Flexible | No |
| Connection 1 | Insert end |
| Connection 2 | Insert end |
| Material insulating material | Rock wool |
| Insulation thickness | 55 mm |
| Working length | 900 mm |
| Max. medium temperature (continuous) | 100 °C |
| With pre-mounted seal | Yes |
| Vapour inhibition layer | No |
| Material inner pipe | Other |
| Material outer pipe | Sendzimir-galvanised steel |
| With core/cone | No |
| Damping 125 Hz | 6.3 dB |
| Damping 250 Hz | 9.9 dB |
| Damping 500 Hz | 18.9 dB |
| Damping 1000 Hz | 33.3 dB |
| Damping 2000 Hz | 35.1 dB |
| Damping 4000 Hz | 23.4 dB |
| With protection cloth | No |
| Damping 63 Hz | 1.8 dB |
| Damping 8000 Hz | 18 dB |
Downloads
Description
STIEBEL ELTRON Geluidsdemper LWF S 180 - lengte 0,9 m De geluiddemper bestaat uit een buitenbuis, een geperforeerde binnenbuis en twee aansluiteinden met nippelmaat. De tussenruimte is gevuld met geluidsabsorberend isolatiemateriaal, een glasvlies tussen binnenbuis en isolatie en beschermt de luchtstroom. Technische gegevens Lengte: 0,9 m Nominale maat: 180 mm Buitendiameter: 290 mm
