SIDELITE ECO, 30 W, 3000 lm, 827-865, white, smart+free Lay-in luminai
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
399,76 €
EAN: 4051859269656
MPN: 312272.002.2.730
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SIDELITE ECO, 30 W, 3000 lm, 827-865, white, smart+free Lay-in luminai |
| Brand | RZB |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 595 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 595 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Beam angle | Open beam/diffuse |
| Colour temperature | 2700-6500 K |
| Max. system power | 32 W |
| Rated luminous flux according to IEC 62722-2-1 | 2750 lm |
| Luminaire efficacy | 100 lm/W |
Packing details
| Packing level 1 | 4051859269656, 4051859269656 |
Other Technical data
| Protection class | II |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 30-32 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 2 |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Nominal current | 125-136 mA |
| Colour of light | Multi-coloured |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 0.1 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-30 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Other |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 20.4 |
| Operation by Bluetooth | Yes |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 26 |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 50 % |
| Dimming DALI-2 | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 160 mm |
| Surface protection housing | Powder coating |
| Power factor | 0.96 |
Downloads
Description

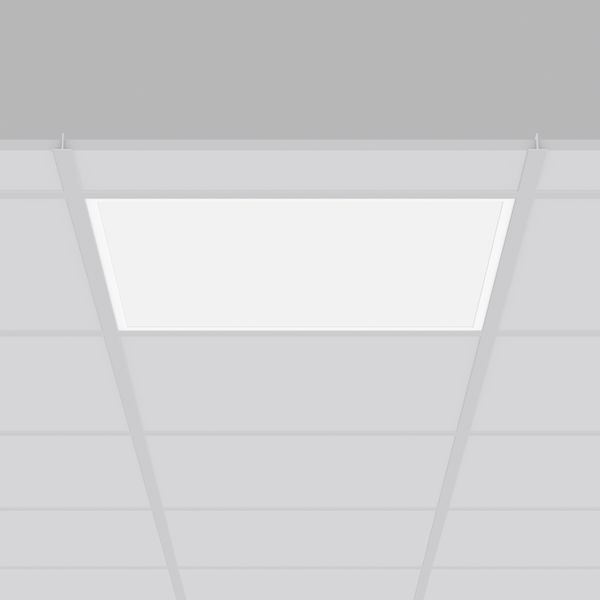

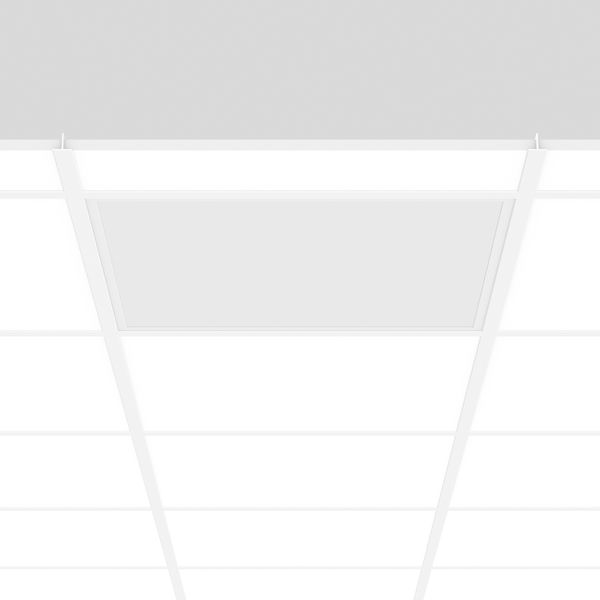

Highly economical recessed luminaire with progressive LED technology. Frame made of aluminium, powder-coated. Diffuser: plastic, opal. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE® technology) for homogeneous light distribution. Tunable white versions, dynamically adjustable from 2700 K to 6500 K. External driver. External driver with simple plug-in locking system. With Casambi smart+free Bluetooth® control for wireless network and operation using Android / iOS devices, free app available for download. Luminaire can be used with accessories (to be ordered separately) as recessed or surface mounting luminaire. Ideal for use as part of the Human Centric Lighting concept in connection with RZB light management systems. Qualified for use in the food and drink industry.
