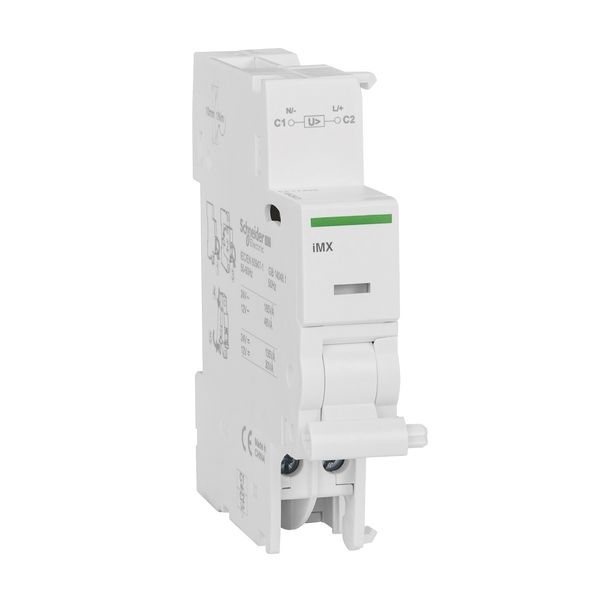

shunt trip release, Acti9, iMX, voltage release, 12...24 V AC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
69,88 €
EAN: 3606480087936
MPN: A9A26478
Package: 1
Box: 8
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | shunt trip release, Acti9, iMX, voltage release, 12...24 V AC |
| Brand | Schneider Electric |
| Categories |
Assembly Accessories and Parts
|
| Country of origin | BE |
| Harmonized System Code | 8536 3010 00 |
| Device fitting | Miniature circuit breaker (MCB) |
| Number of contacts as normally open contact | 0 |
| With auto test for earth leakage function | No |
| Suitable for max. current main contact unit | 63 A |
Packing details
| Packing level 1 | 3606480087936 |
| Packing level 2 | 3606480087933 |
| Packing level 3 | 3606480087934 |
Other Technical data
| Rated voltage | 24 V |
| Installed at the factory | No |
| Width in number of modular spacings | 0 |
| Rated switch current | 0 A |
| Number of fault-signal switches | 0 |
| Additional equipment | Shunt release (for power circuit breaker) |
| Voltage type for actuating | AC/DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
| Suitable for max. number of poles main contact unit (total) | 4 |
Downloads
ECOP (Environmental Code of Practice)
Technical manual
Others
Declaration EPD (Environmental Product Declaration)
Mounting instruction
Description
This Acti9 iMX electrical tripping for auxiliary is a shunt trip release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. The width in 9mm pitches is 2. The Uc control circuit voltage is 12…24VAC or 12…24VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to +85°C. This product complies with IEC/EN 60947-5-1 standards.
