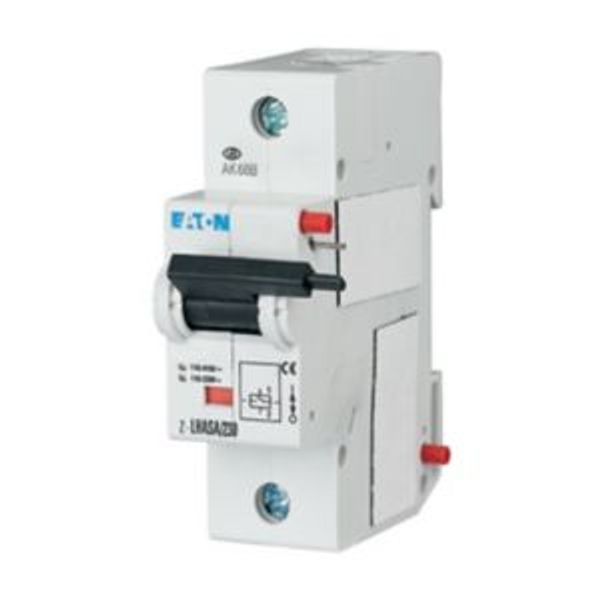

Shunt release, up to 125A, 12-60V, 1.5HP
In vendor's stock
Price (excl. VAT):
36,85 €
EAN: 4015082484415
MPN: 248441
Package: 1
Box: 8
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Shunt release, up to 125A, 12-60V, 1.5HP |
| Brand | EATON |
| Categories |
Assembly Accessories and Parts
|
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Device fitting | Miniature circuit breaker (MCB) |
| Number of contacts as normally open contact | 1 |
| With auto test for earth leakage function | No |
| Suitable for max. current main contact unit | 14 A |
Packing details
| Packing level 1 | 4015082484415 |
| Packing level 2 | 9007912228318 |
Other Technical data
| Rated voltage | 24 V |
| Installed at the factory | No |
| Width in number of modular spacings | 1.5 |
| Rated switch current | 18 A |
| Number of fault-signal switches | 0 |
| Additional equipment | Shunt release (for power circuit breaker) |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Suitable for max. number of poles main contact unit (total) | 1 |
Description
Shunt release, for MCB up to 125A, voltage range 12-60V AC, max. current consumption at switch-on time Un 18 A, frequency 50/60hz, can be retrofitted, standard front dimension 45 mm, mounting width 1.5 space units (27mm), top-hat rail mounting, terminal cross-section 1–25 mm²
