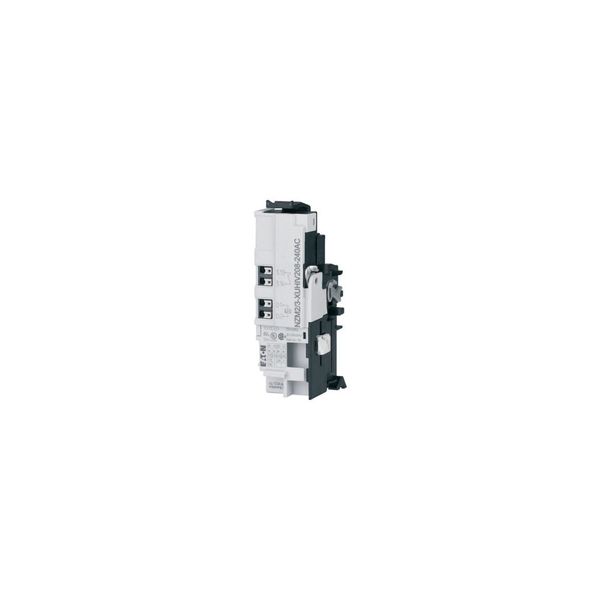

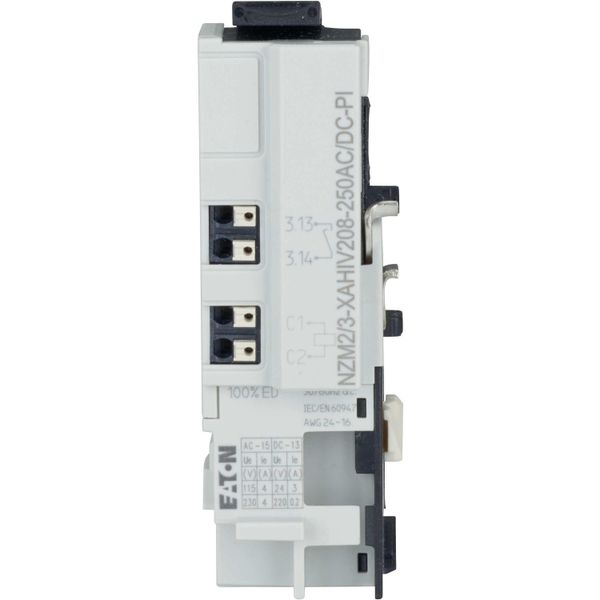

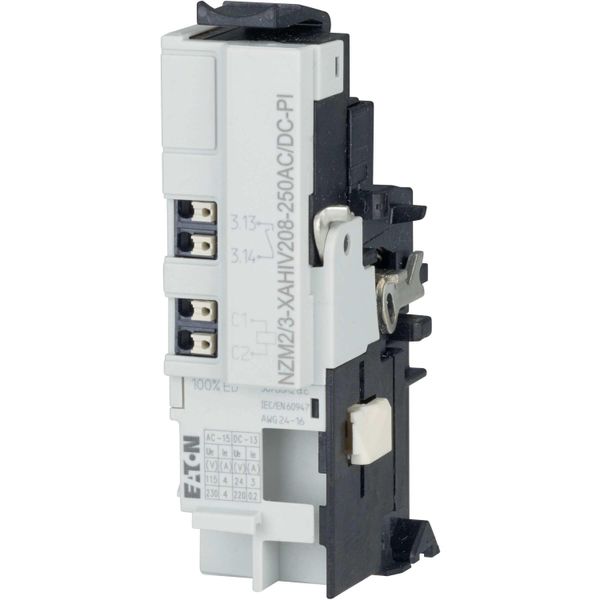

NZM2/3-XAHIV208-250AC/DC-PI Shunt release for NZM2/3, 1 early-make auxiliary contact, 2NO, 208-250AC/DC, Push-in terminals
Order only
Price (excl. VAT):
76,66 €
EAN: 4015081878109
MPN: 189815
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | NZM2/3-XAHIV208-250AC/DC-PI Shunt release for NZM2/3, 1 early-make auxiliary contact, 2NO, 208-250AC/DC, Push-in terminals |
| Brand | EATON |
| Categories |
Trip & Release Units
|
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| Type of electric connection | Spring clamp connection |
| Rated control supply voltage at AC 50 Hz | 208-250 V |
| Rated control supply voltage at AC 60 Hz | 208-250 V |
| Rated control supply voltage at DC | 208-250 V |
| Initial value of the undelayed short-circuit release - setting range | 0 A |
| End value adjustment range undelayed short-circuit release | 0 A |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 4015081878109 |
Other Technical data
| Suitable for off-load switch | Yes |
| Suitable for overload relay | No |
| Suitable for motor safety switch | Yes |
| Suitable for power circuit breaker | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Description
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: Shunt releases with one early-make contact and push-in terminals. Switches are tripped by a voltage pulse or by the application of uninterrupted voltage. When the shunt release is live, contact with the circuit-breaker's main contacts on switching on is reliably prevented. Early-make of auxiliary contacts on switching on and off (manual operation): approx. 20 ms (NZM2/3) and 90 ms (NZM4) . Shunt release modules cannot be installed simultaneously with early-make contact NZM…-XHIV, untervoltage release NZM…-XU…, relais modules NZM...-X2A..., or remote operator NZM...-XR...
