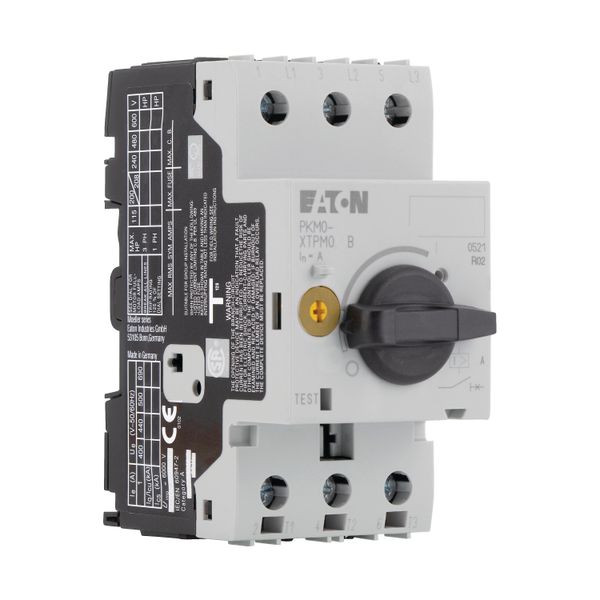

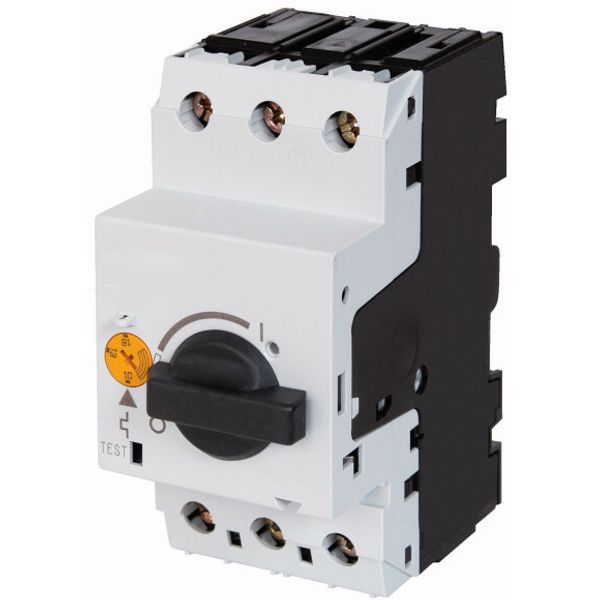

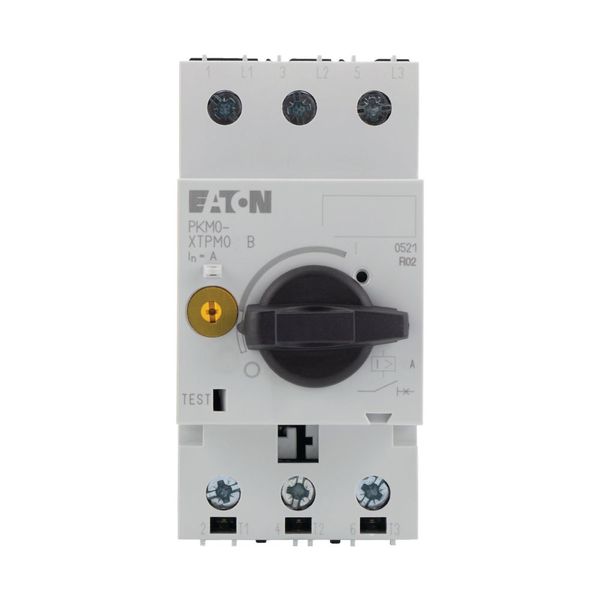

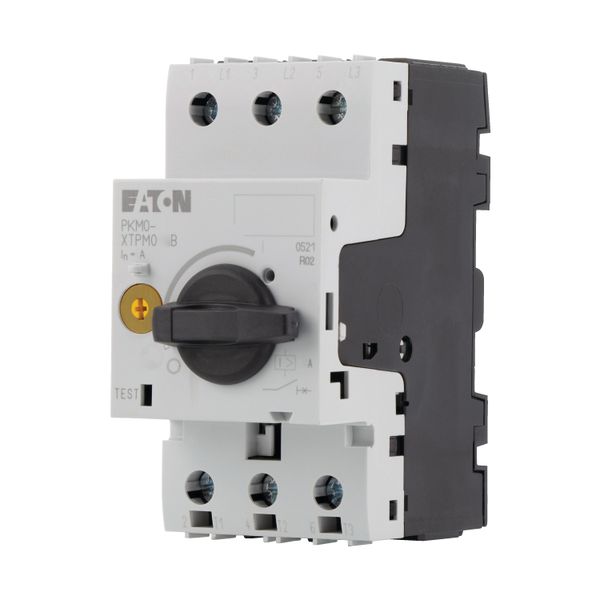

PKM0-4 Short-circuit protective breaker, Iu 4 A, Irm 62 A, Screw terminals, Also suitable for motors with efficiency class IE3.
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
30,64 €
This price is valid until 24.12.25
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
Item condition |
New |
Manufacture name |
PKM0-4 Short-circuit protective breaker, Iu 4 A, Irm 62 A, Screw terminals, Also suitable for motors with efficiency class IE3. |
Brand |
EATON
|
Categories |
Motor protection circuit-breakers
|
Country of origin |
DE |
Harmonized System Code |
8536 3010 00
|
Rated permanent current Iu |
4 A |
Number of poles |
3 |
Rated operating voltage |
690 V |
Overload release current setting |
0 A |
Degree of protection (IP) |
IP20 |
Rated short-circuit breaking capacity lcu at 400 V, AC |
150 kA |
Adjustment range undelayed short-circuit release |
62 A |
Packing details
Packing level 1 |
4015080727279 |
Other Technical data
Width |
45 mm |
Height |
93 mm |
Depth |
76 mm |
Rated operation power at AC-3, 400 V |
1.5 kW |
With integrated auxiliary switch |
No |
With integrated under voltage release |
No |
With thermal protection |
No |
Type of electrical connection of main circuit |
Screw connection |
Type of control element |
Turn button |
Switch off technique |
Magnetic |
Rated operation power at AC-3, 230 V |
0.75 kW |
Phase failure sensitive |
No |
Device construction |
Built-in device fixed built-in technique |
Description
Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKM0, with non-delayed short-circuit release, screw and snap fitting, with screw terminal, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release, contact module, clip plate
